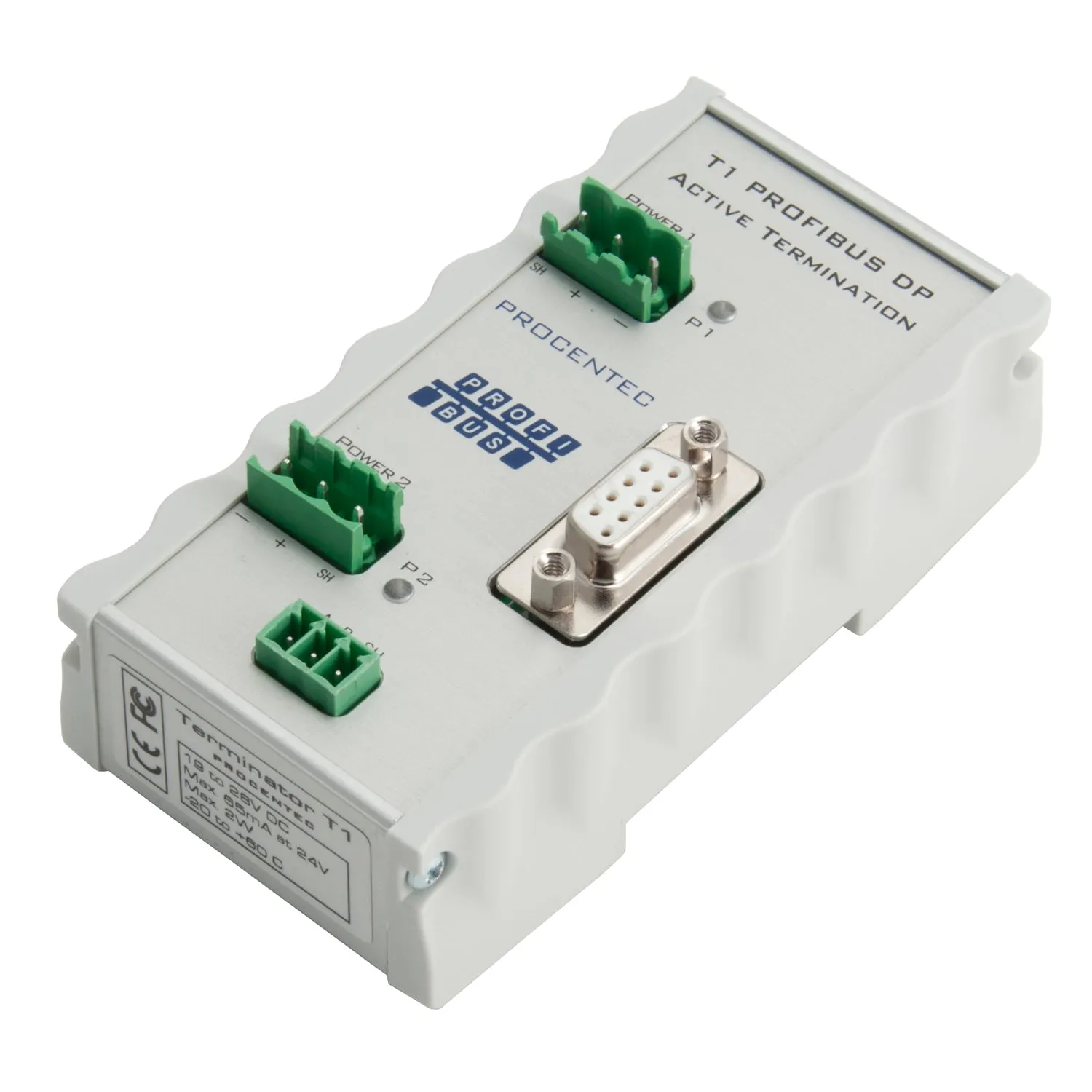

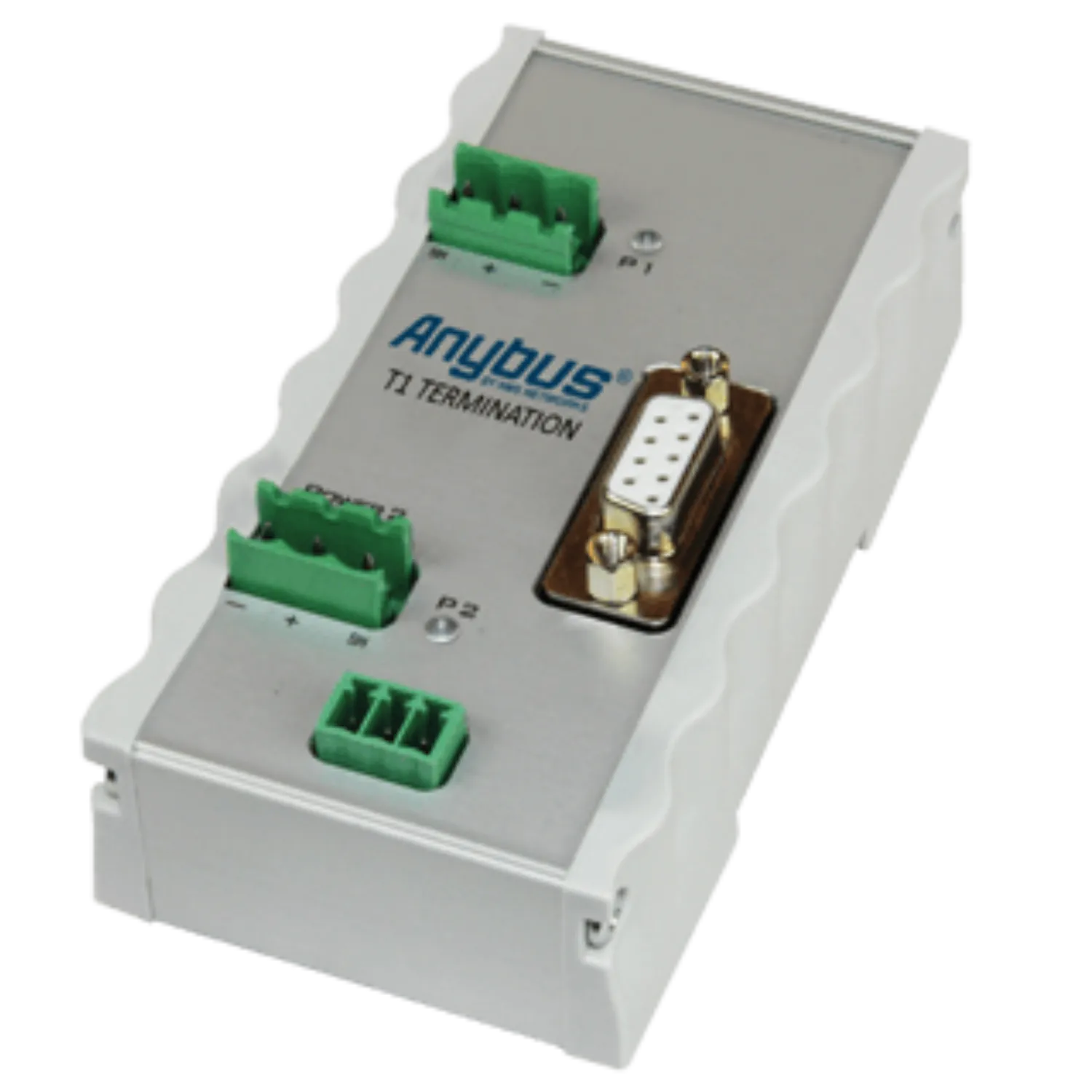

The T1 Terminator provides active and reliable termination for PROFIBUS networks which are based on RS 485. By using this component it is possible to turn off, remove or replace devices without disturbing the bus communication. This applies in particular to the devices at the end of the segment.

Special features which makes the T1 PROFIBUS Terminator a very useful infrastructure component.

• Redundant power supply and diagnostic LEDs to indicate the status of each power source
• Equipped with an additional DB9 connector for ProfiTrace or other maintenance/engineering tool
• Use DB9 connector as the primary bus connection if circumstances dictate

The T1 Terminator can be installed on a standard DIN-rail.
