DESCRIPTION

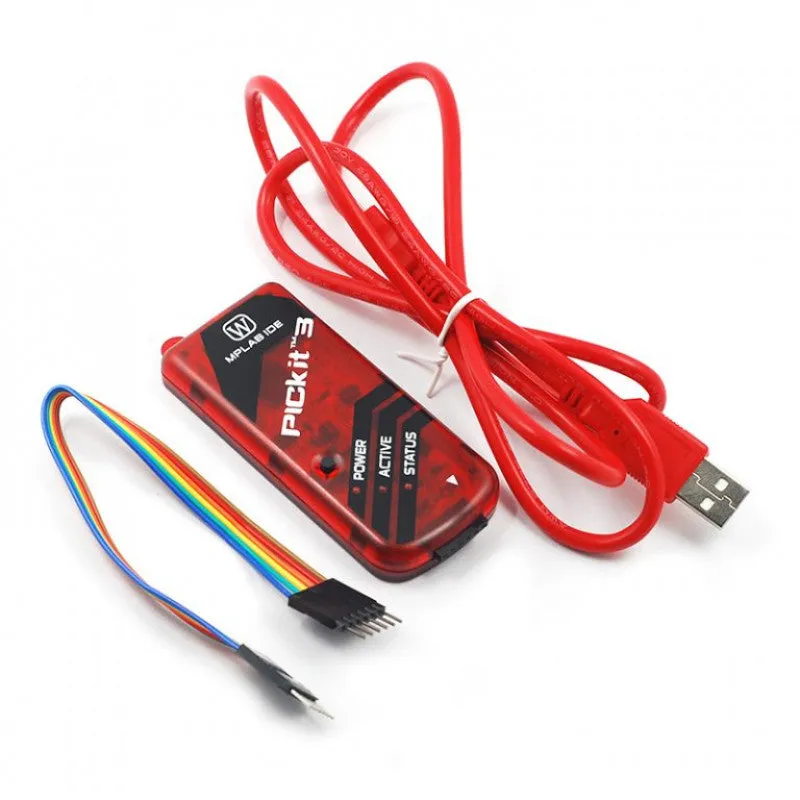

Microchip’s PICkit™ 3 In-Circuit Debugger/Programmer uses in-circuit debugging logic incorporated into each chip with Flash memory to provide a low-cost hardware debugger and programmer. In-circuit debugging offers these benefits:

Low cost
Minimum of additional hardware needed for debug
Expensive sockets or adapters are not required

The MPLAB PICkit 3 allows debugging and programming of PIC® and dsPIC® Flash microcontrollers at a most affordable price point using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE). The MPLAB PICkit 3 is connected to the design engineer’s PC using a full speed USB interface and can be connected to the target via a Microchip debug (RJ-11) connector (compatible with MPLAB ICD 2, MPLAB ICD 3 and MPLAB REAL ICE).

SPECIFICATION

Full-speed USB support using Windows standard drivers
Real-time execution
Processors run at maximum speeds
Built-in over-voltage/short circuit monitor
Low voltage to 5V (1.8 to the 5V range)
Read/write program and data memory of the microcontroller
Diagnostic LEDs (power, active, status)
Read/write program and data memory of the microcontroller
1Erase of all memory types (EEPROM, ID, configuration, and program) with verification
Peripheral freeze at the breakpoint.
Program up to 512K byte flash.
