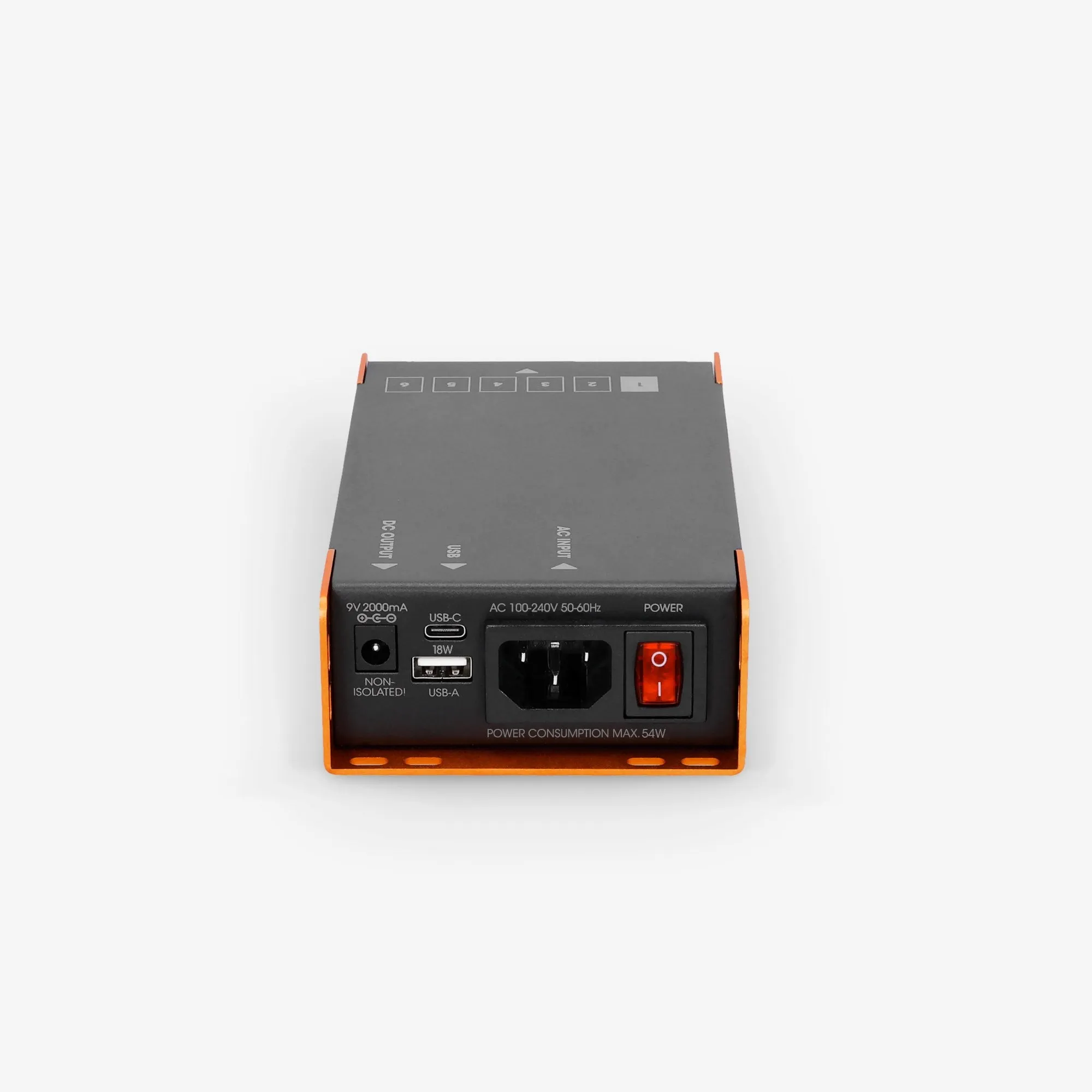

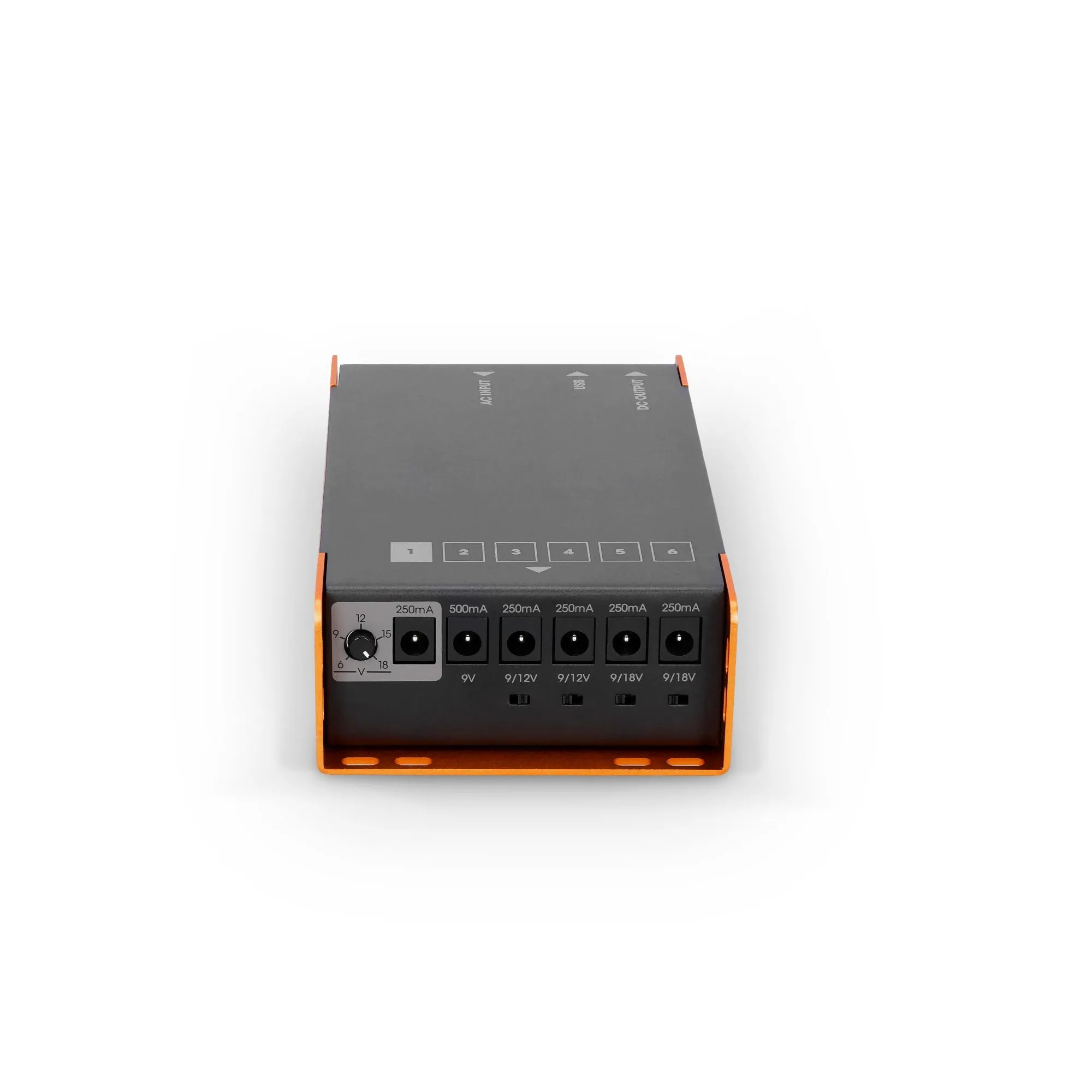

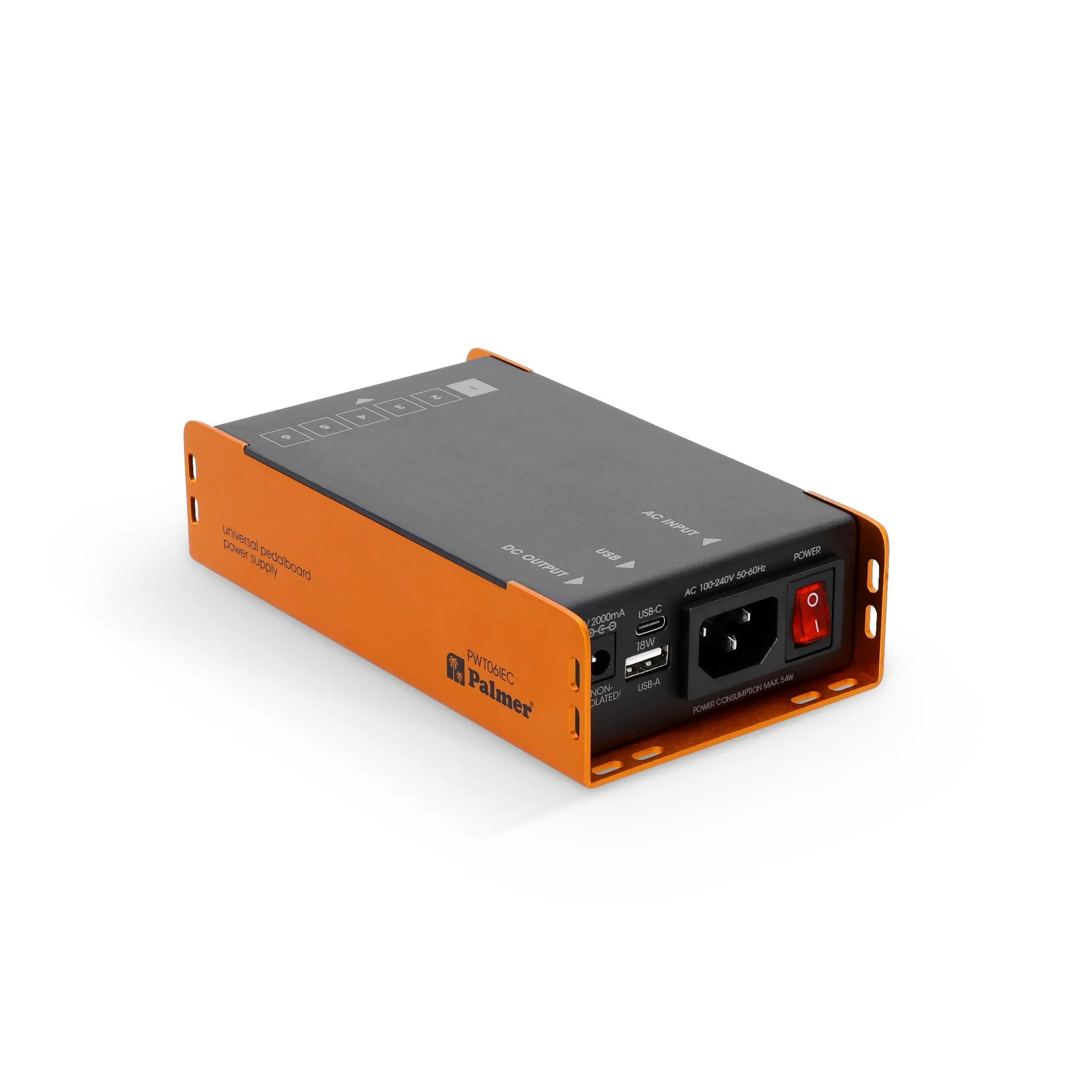

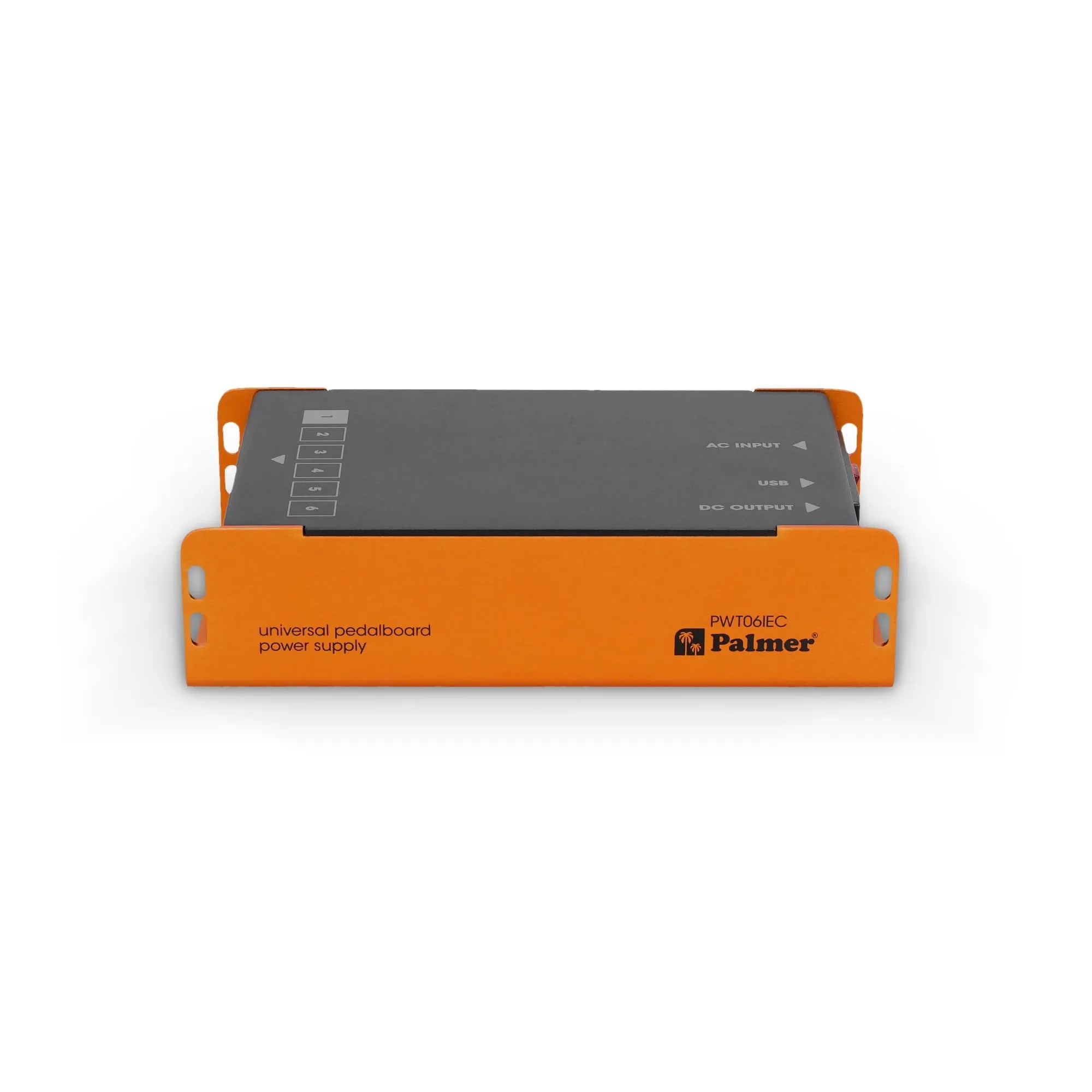

A pedalboard can be a noisy place, and choosing the right power supply can make a big difference to the noise level and clarity of your guitar tone. And that's where the PWT 06 IEC comes in. With six high current, individually isolated, ultra low noise outputs - each with its own dedicated regulator and custom isolated transformer - the PWT 06 IEC represents the next generation of Palmer® isolated pedal power supplies. Featuring one variable voltage output, the PWT 06 IEC lets you adjust the voltage between 6 and 18 volts, giving you even more headroom to run your overdrive pedals, as well as the "dying battery" sound that many guitarists love. In addition, the Palmer PWT 06 IEC has a USB C and USB A output with 18W so you can charge your mobile devices or even power your MIDI keyboards. We designed the PWT 06 IEC to address guitarists' main pain points when it comes to powering their precious effects pedals, so you can perform with complete peace of mind, knowing that your pedals and rig will sound as good as they can.
| Product type | Power Supplies |
| Input voltage | AC 100 - 240 V |
| single isolated DC outputs | 6 |
| Output 1 | 6 - 18 V (250 mA max) |
| Output 2 | 9 V (500 mA max) |
| Output 3-4 | 9 / 12 V (250 mA max) |
| Output 5-6 | 9 / 18 V (250 mA max) |
| non-isolated DC output | 9 V (2000 mA max) |
| Output connectors | 2.1 x 5.5 mm |
| Output voltage | 6 V - 18 V |
| Max. Output power | 36 W |
| Max. Power consumption | 54 W |
| Individually isolated outputs | Yes |
| Polarity | Center negative |
| USB-C / USB-A output power | 18 W max. |
| Indicators | Power |
| Controls | Mains switch, output voltage selector and switch |
| Depth | 93 mm |
| Width | 168 mm |
| Height | 42 mm |
| Weight | 0,48 kg |
| Accessories | Power cable, 9x DC cable (30 / 60 cm), 4x rubber feet |
| Noise | < 40 µV (output 1 - 6) |
| Ambient temperature (in operation) | 0 - 40 °C |
| Relative Humidity | < 80 %, not condensing |
