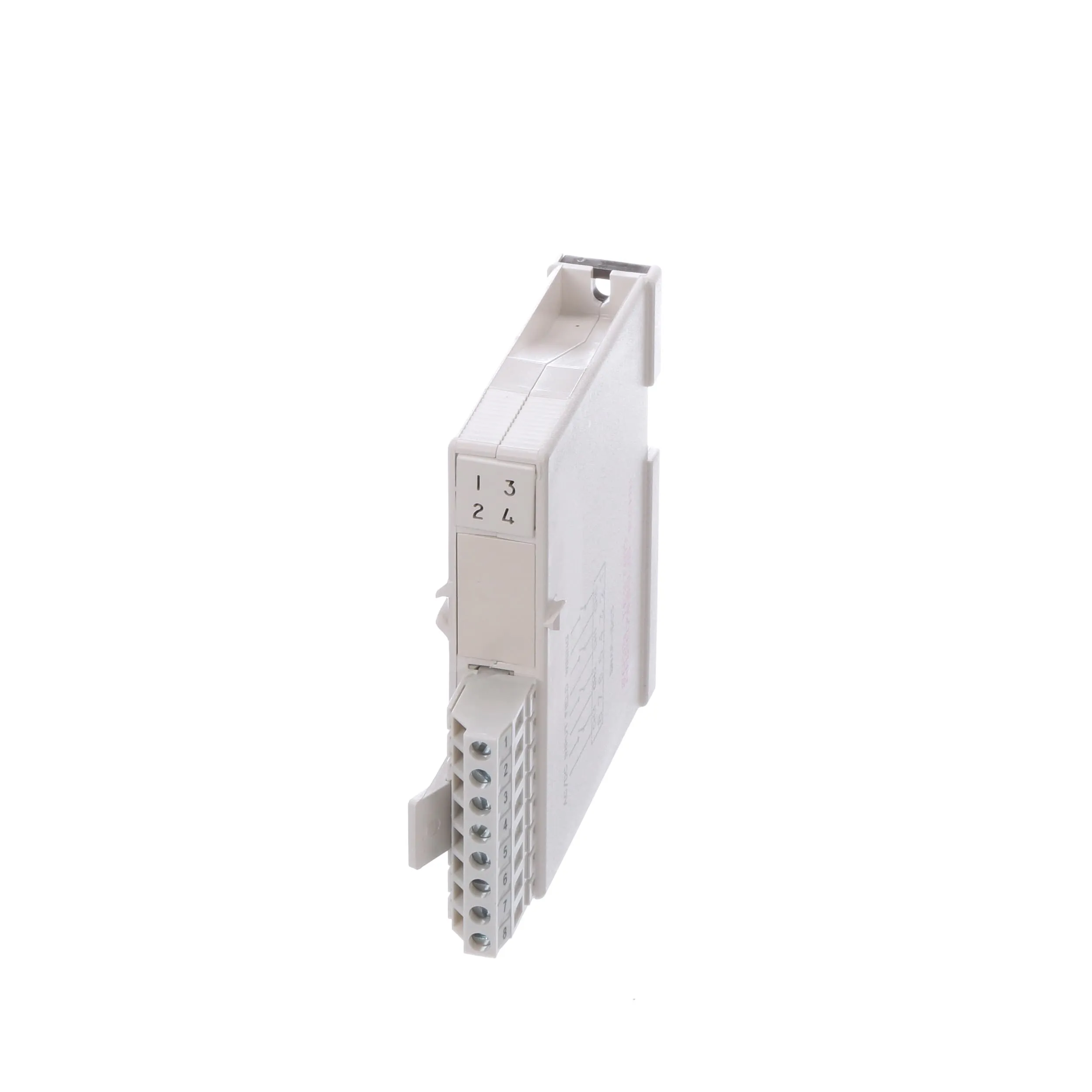

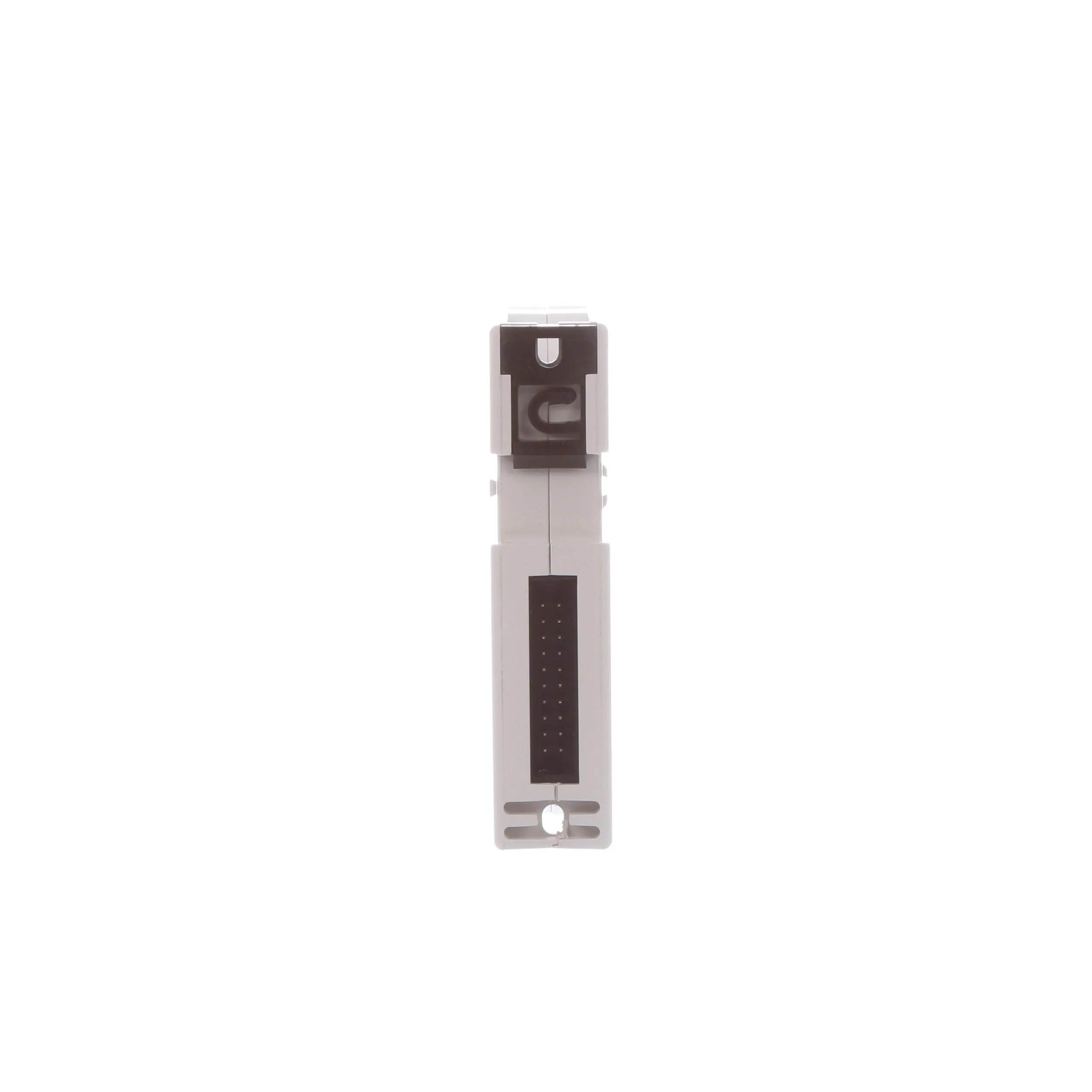

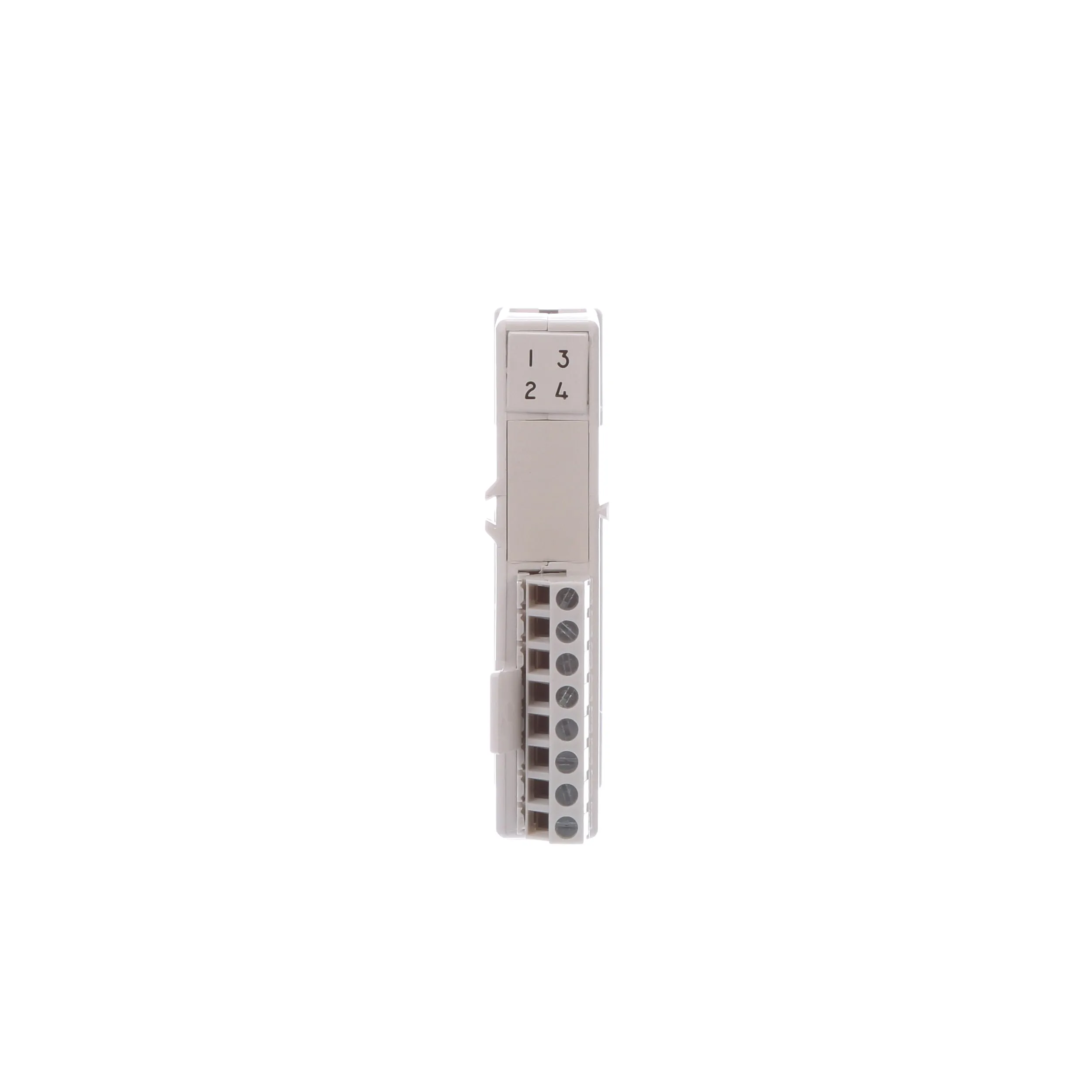

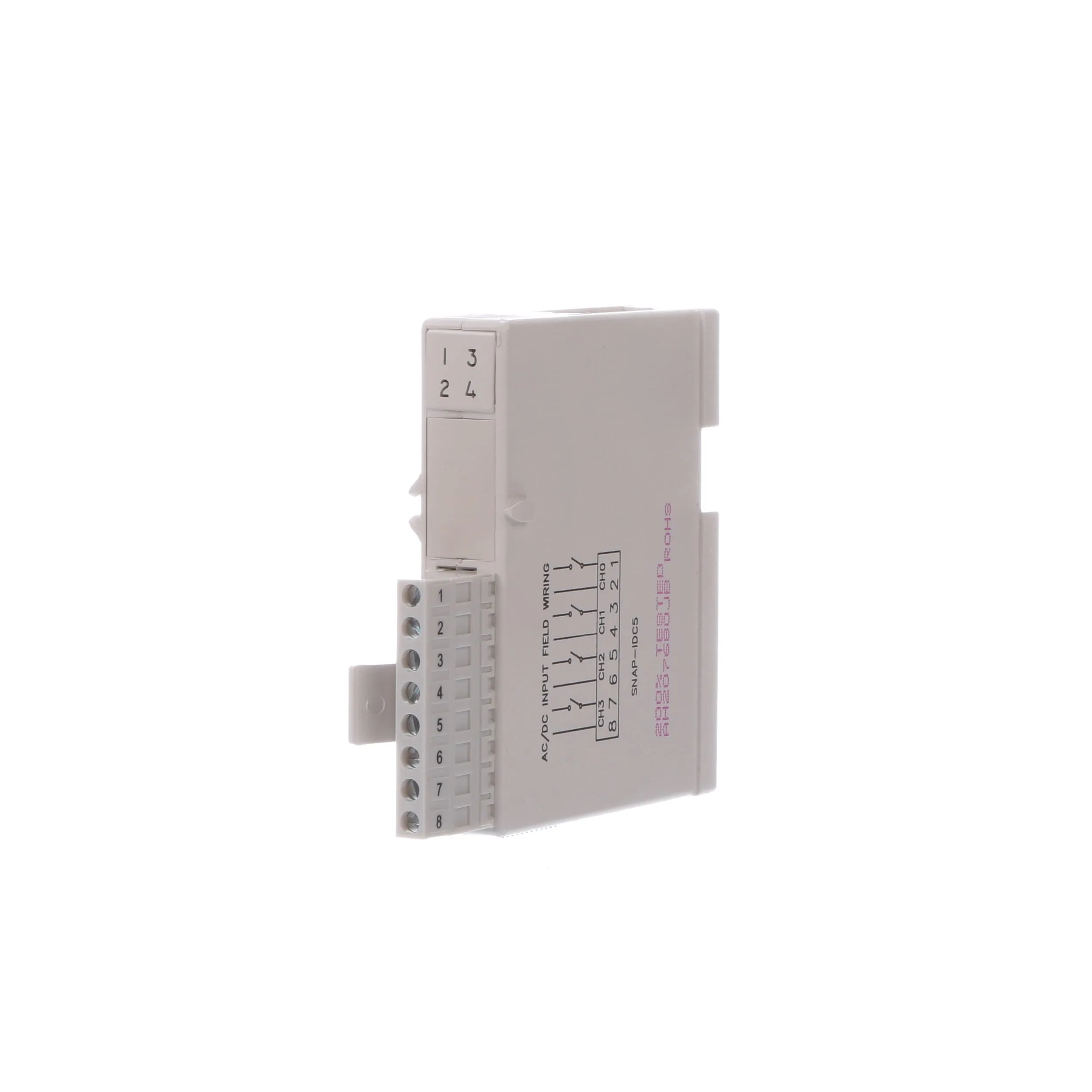

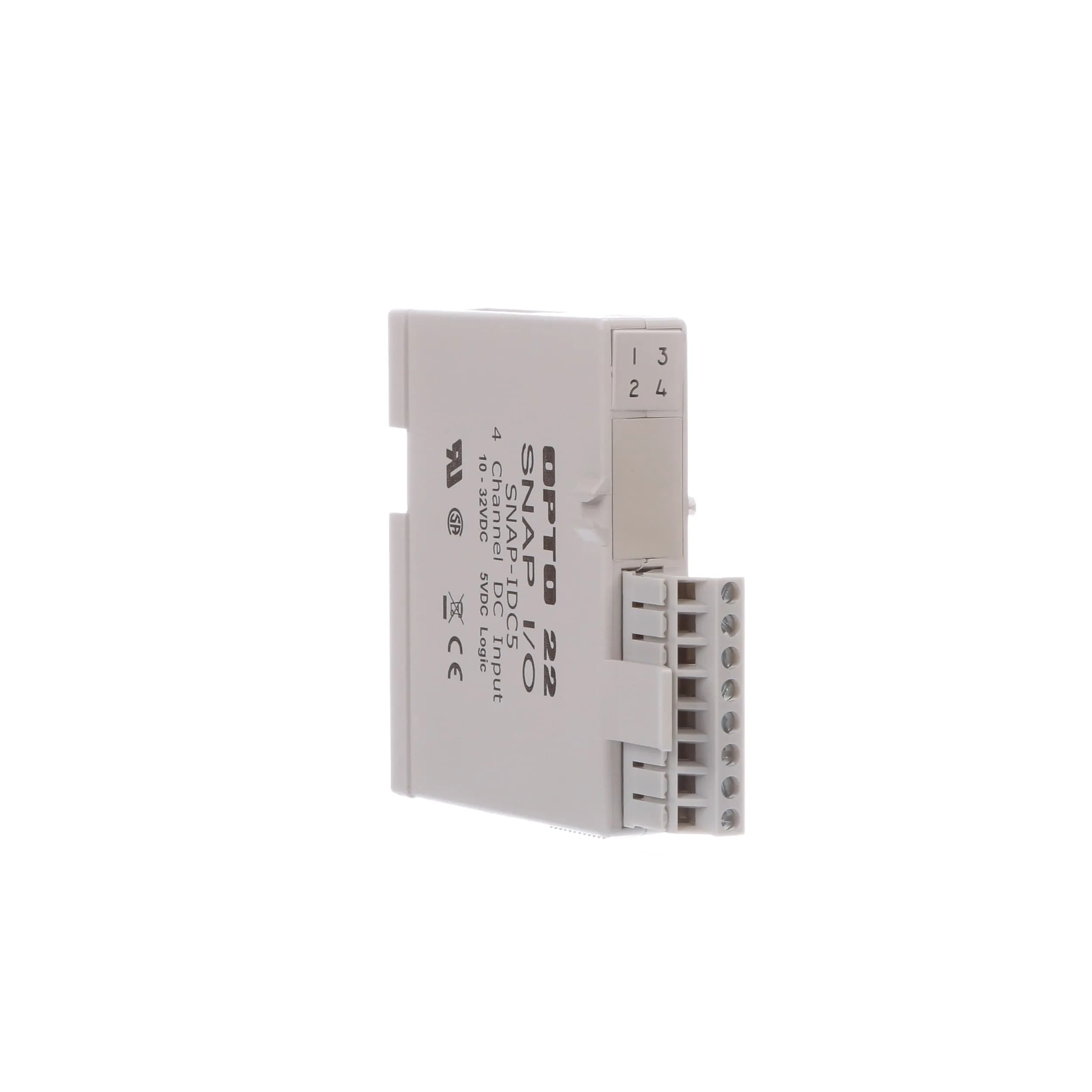

Name: Opto 22 SNAP-IDC5
SKU: 604354

Product Details ＋

Product Attribute	Attribute Value
Application	Data Acquisition ; Energy Management ; Industrial Automation ; Monitoring ; Testing
Connection to Host	Backplane
Depth	0.197" (5mm)
Dimensions	82.55 x 18.29 x 90.17 mm
For Use With	SNAP PAC System
Input	10 to 32 VDC
Input Current	50 mA
Input Type	Digital
Input Voltage	24 VAC⁄VDC (Nom.)
Isolation Voltage	4000 V
Length	3.25" (82.55mm)
Maximum Operating Temperature	70 °C
Minimum Operating Temperature	0 °C
Module Type	Input
Mounting Type	5 Pin I/O Mounting Board
Number of Channels	4
Number of I/O Ports	4
Number of Inputs	4 Input
Primary Type	Control
Product Header	Snap Digital Input Module
Series
Special Features	Optical Isolation
Standards	UL and CE Approved
Supply Voltage	5 VDC
Temperature Operating Range	0 to 70 °C
Time, Turn-Off	15 ms
Time, Turn-On	5 ms
Type	Input
Voltage Rating	10 to 32 VDC
Width	0.72" (18.29mm)

Overview

2.7 V (Min.) @ 0.4 mA Nominal Logic Voltage, 5 ms Turn-On Time, Digital Input Modules

Four channels per module

4,000-volt transient isolation

Convenient pluggable wiring terminals

Channel-specific LEDs

Operating temperature: 0° to 70°C

UL and CE approved

Accepts up to 14 AWG wire

Factory mutual approved
The SNAP-IDC5-SW and SNAP-IDC5-SW-NC modules provide four channels of contact status input. Each module supplies 15 volts of power to an external dry contact switch. The SNAP-IDC5-SW senses switch closure; the SNAP-IDC5-SWNC senses switch opening. Each user-supplied switch is connected with two wires.
