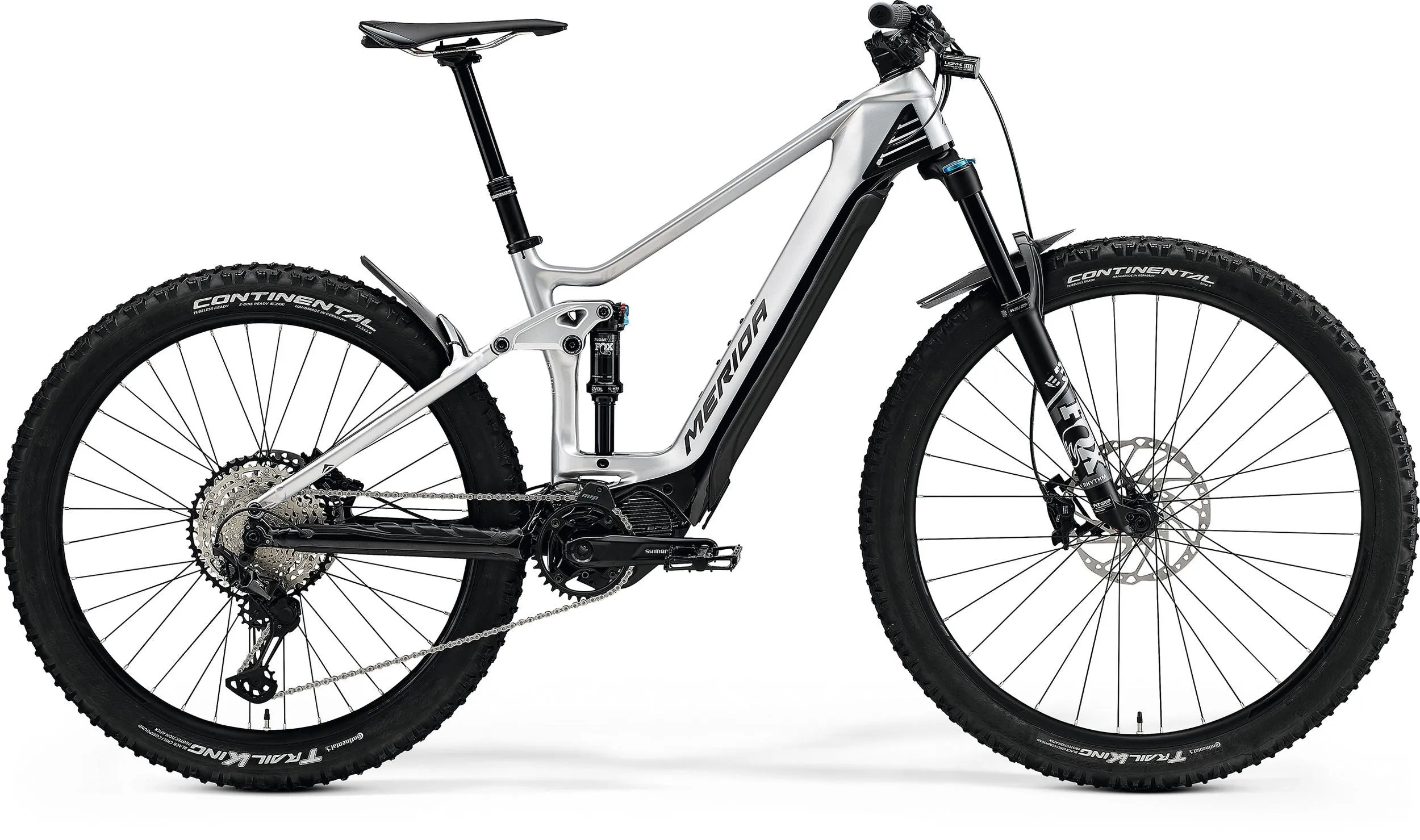

Name: Merida eOne forty 8000
SKU: 300877

Product Details ＋

Comes equipped with the new EP8 motor from Shimano STePS. It offers an increased performance of 85 Nm, less weight, a further reduction in size and less friction. On top of that, the new internal battery offers an extended range and super-fast charging capabilities.

SPEC..

material: carbon
133mm suspension travel
27.5x2.8" max. wheelsize
148x12mm axle standard
intube
max. 630 Wh

FRAME SIZE S, M, L, XL, XXL

lockout

Air
140mm suspension travel
Tapered
51mm fork offset
29x2.5" max wheelsize

85Nm

BATTERY Shimano E8036 630Wh / E8035 504Wh S

4A charging current

DISPLAY Shimano SC-E7000

SPEED SENSOR Shimano EW-SS301

29mm inner width
material: aluminium
Tubeless ready (tubeless tape and valves not included)

110x15mm width front hub
32 spoke holes
Centerlock
148x12mm width rear hub
36 spoke holes
Centerlock

29x2.4 "
fold
BlackChili
ProTection Apex
TR

27.5x2.6 "
fold
BlackChili
ProTection Apex
TR

including removeable lever, 6/4mm allen key

34 teeth
Shimano FCEM600

165 mm for all sizes

BOTTOM BRACKET included

10-51 teeth
12 speed

CHAIN CN-M6100

SHIFTERS Shimano SL -MT500-IL / Shimano XT M8100 12

REAR DERAILLEUR Shimano XT RDM8100 Shadow 12

4 piston

203 mm

HEADSET MERIDA-8152

material: aluminium
35mm diameter
0° stem angle
GoPro & Supernova mount
50 mm all sizes

STEM SIZE 50 mm all sizes

780mm width
20mm rise

GRIP MERIDA EXPERT EC

30.9mm diameter
0mm setback
S: 125mm travel seatpost - M/L 150mm travel seatpost - XL/XXL 170mm travel seatpost

V-mount

SEAT CLAMP MERIDA EXPERT clamp

LIGHTS LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount / USB REAR Light CG-214RG

MUDGUARD C093-02F C093-02R

PEDAL VP VPE-527

weighed with 29" wheels and at frame size M, without pedals, incl. lights

FRAME SIZE	S	M	L	XL	XXL
TYRE SIZES	29/27.5"	29/27.5"	29/27.5"	29/27.5"	29/27.5"
ST SEAT TUBES MM	405	420	440	470	500
TT TOP TUBES MM	561	582	603	626	650
CS CHAIN STAYS MM	439.5	439.5	439.5	439.5	439.5
HTA HEAD TUBE ANGLE [°]	66.5	66.5	66.5	66.5	66.5
STA SEAT TUBE ANGLE [°]	76.5	76.5	76.5	76.5	76.5
BD BOTTOM BRACKET DROPS MM	24	24	24	24	24
HT HEAD TUBE LENGTHS MM	110	115	120	135	150
FL FORK LENGTHS MM	551	551	551	551	551
R REACH MM	410	429.5	449.5	469.5	489.5
S STACKS MM	622	626.5	631	644.5	658
WB WHEEL BASE MM	1160	1182	1204	1230.5	1256.5
SH STAND OVER HEIGHT MM	736	731	727	734	748
