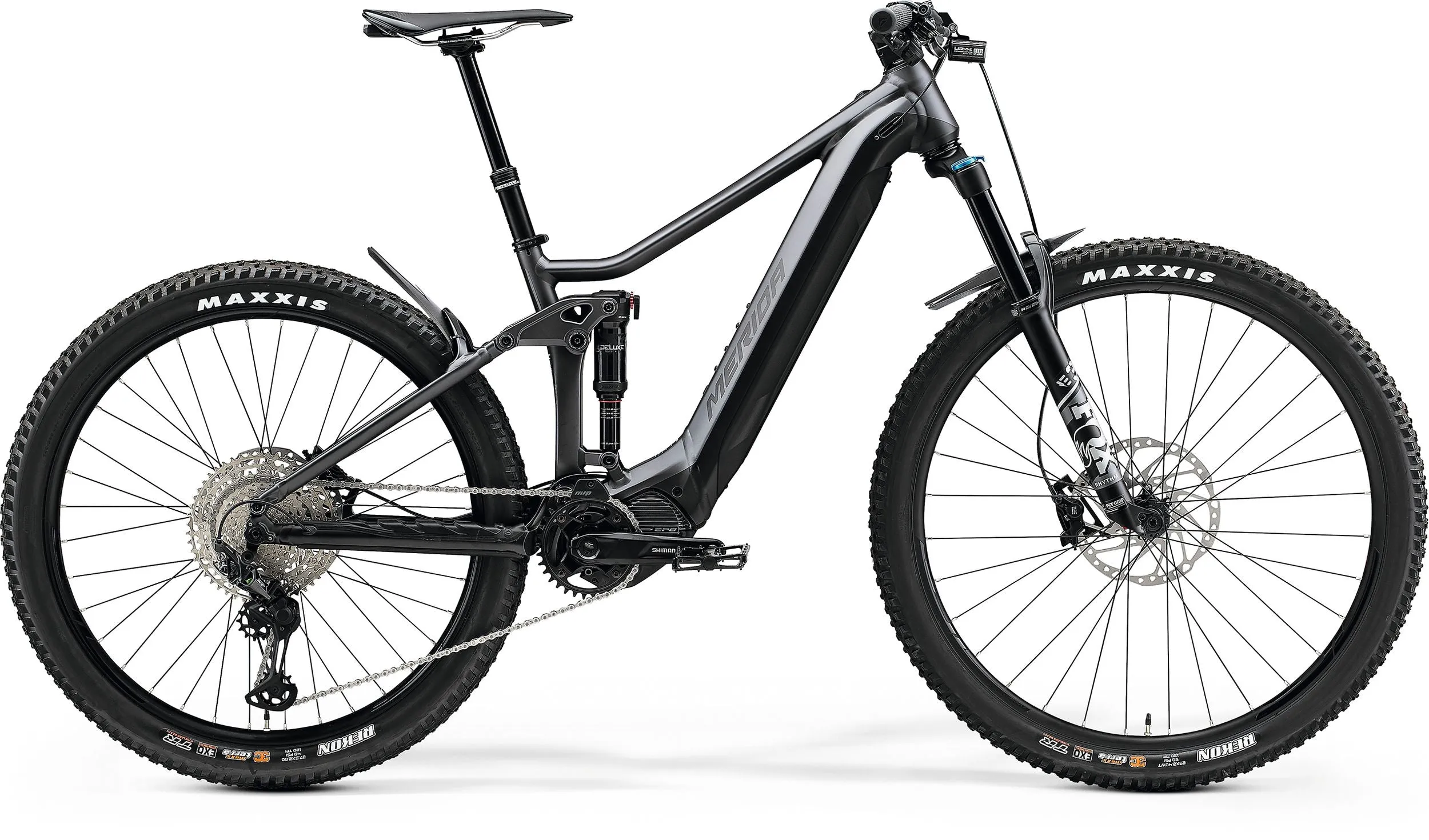

Product Details
＋
- material: aluminium
- 133mm suspension travel
- 27.5x2.8" max. wheelsize
- 148x12mm axle standard
- intube
- max. 630 Wh
FRAME SIZE S, M, L, XL, XXL
COLOR SILK ANTHRACITE/BLACK
- Air
- 140mm suspension travel
- Tapered
- 51mm fork offset
- 29x2.5" max wheelsize
- platform
- 4 piston
- 203 mm
HEADSET MERIDA-8152
GRIP MERIDA EXPERT EC
DERAILLEUR (R) Shimano XT RDM8100 Shadow 12
SHIFTERS Shimano SL -MT500-IL / Shimano DEORE M6100 12
- 30.9mm diameter
- 0mm setback
- S: 125mm travel seatpost - M/L 150mm travel seatpost - XL/XXL 170mm travel seatpost
SEAT CLAMP MERIDA EXPERT clamp
- V-mount
PEDAL VP VPE-527
CHAIN CN-M6100
- 34 teeth
- Shimano FCEM600
- 165 mm for all sizes
- 10-51 teeth
- 12 speed
BOTTOM BRACKET included
- 110x15mm width front hub
- 32 spoke holes
- Centerlock
- 148x12mm width rear hub, 36 spoke holes
- Centerlock
- 29mm inner width
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- 29x2.4"
- fold
- 3C EXO MaxxTerra
- 27.5x2.6"
- fold
- TR 3C EXO MaxxTerra
- including removeable lever, 6/4mm allen key
SPOKES Black stainless
LIGHT FRONT LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
LIGHT REAR USB REAR Light CG-214RG
FENDER C093-02F C093-02R
- 85Nm
BATTERY Shimano E8036 630Wh / E8035 504Wh S
DISPLAY Shimano SC-E7000
weighed with 29" wheels and at frame size M, without pedals, incl. lights
MAX. WEIGHT 140 kg
| FRAME SIZE | S | M | L | XL | XXL |
| TYRE SIZES | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
| ST SEAT TUBE [MM] | 405 | 415 | 430 | 450 | 470 |
| TT TOP TUBE [MM] | 561 | 581 | 603 | 624 | 645 |
| CS CHAIN STAY LENGTH [MM] | 439.5 | 439.5 | 439.5 | 439.5 | 439.5 |
| HTA HEAD TUBE ANGLE [°] | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
| STA SEAT TUBE ANGLE [°] | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 |
| BD BOTTOM BRACKED DROP [MM] | 25 | 25 | 25 | 25 | 25 |
| HT HEAD TUBE [MM] | 110 | 115 | 120 | 125 | 130 |
| FL FORK LENGTH [MM] | 551 | 551 | 551 | 551 | 551 |
| R REACH [MM] | 410 | 430 | 450 | 469 | 489 |
| S STACK [MM] | 622 | 627 | 631 | 635 | 640 |
| WB WHEEL BASE [MM] | 1160 | 1182 | 1204 | 1226 | 1248 |
| SH STAND OVER HEIGHT [MM] | 729 | 730 | 727 | 733 | 747 |
