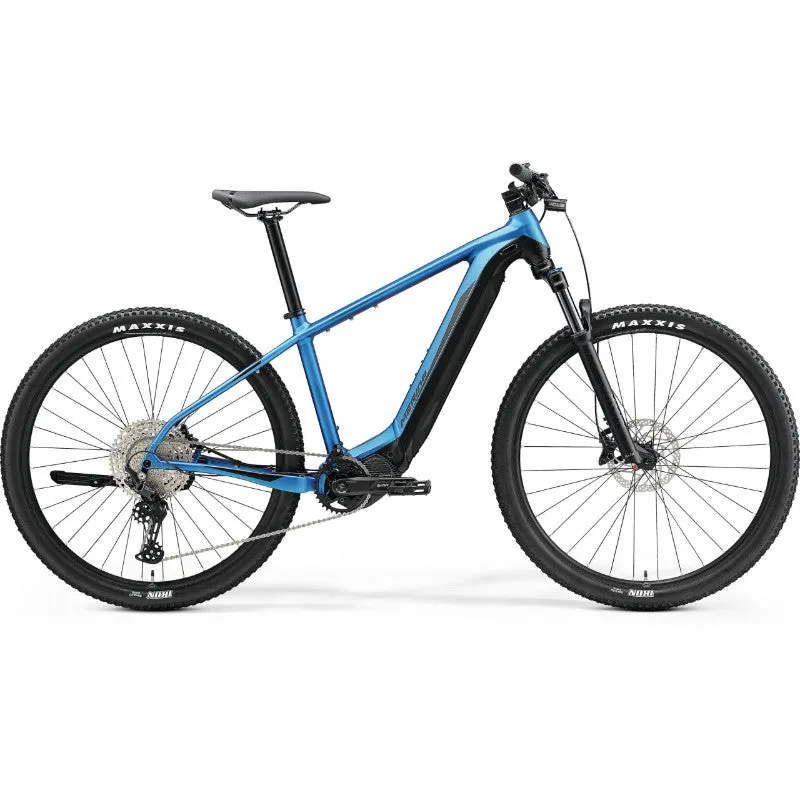

Who says you can’t have it all? With a versatile, high-quality aluminium frame that integrates the latest in Shimano drive unit technology, with either a EP8 or EP6 motor, both offering a whopping 85Nn of torque and a continuous rated power of 250 watts. Pairing this with a whopping 630 Wh battery, results in a bike with the ability to handle off-road riding just as well as the daily commute, theMerida eBig Nine 600 Electric Hardtail Mountain Bike delivers the holy grail for riders that don’t want their bike to pigeonhole their riding. Add in a smooth SR Suntour fork to tame the bumps and a quality Shimano drivetrain that can handle everything from steep mountain climbs to fast, flat sections and you’ll be wondering if you need anything more. The Merida eBig Nine 600 Electric Hardtail Mountain Bikebike can handle serious off-road riding but can also handle the commute to work with ease - especially if you want to have some fun on the way! Versatility is its middle name.
- Lightweight aluminium frame with fast-rolling 29" wheels
- Suntour SR 100mm suspension fork
- Powerful and refined Shimano EP8 drive unit, 85Nm torque
- Integrated 630Wh battery
- Assist speeds up to 32 km/h
- Approx range 100 - 270km
- Shimano Deore 1 x 11 speed drivetrain
- Shimano hydraulic disc brakes
- Maxxis Ikon 29 x 2.2" tyres
| Accessories: | Massload CL-KA98 Kickstand, Shimano Charger |
|---|---|
| Axles: | MERIDA EXPERT TR; including removeable lever, 6/4mm allen key |
| Battery: | Shimano STePS E8036 |
| Brakes: | Shimano M4100 |
| Cassette: | Shimano M5100 |
| Chain: | KMC e11S EPT |
| Chainwheel: | Shimano CRE70-B |
| Colour (text): | Blue |
| Crankset: | Shimano FCEM600 165 mm |
| Derailleur rear: | Shimano Deore RDM5100 11 |
| Display: | Shimano SC-E5003A |
| Fork: | SR Suntour XCR34 LOR DS Air Boost 100mm Tapered 51mm fork offset 29x2.4" max wheelsize |
| Frame: | eBig Nine LITE III material: aluminium 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize 148x12mm axle standard intube |
| Grip: | MERIDA EXPERT EC |
| Handlebar: | Merida Expert eTR 760mm width 20mm rise |
| Handlebar stem: | Merida Expert eTRII material: aluminium 35mm diameter 0° stem angle GoPro & Supernova mount 50 mm |
| Headset: | MERIDA 8157 |
| Hubs: | F: Shimano MT400-B |
| Light(s): | F: LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount | R: USB REAR Light CG-214RG |
| Motor drive unit: | Shimano STePS EP8 or EP6, both motors offer the same power and torque with the EP6 slightly newer and 300g heavier than the EP8 |
| Pedals: | VP VPE-537 |
| Rim: | MERIDA COMP CC |
| Rotor front: | Shimano M4100 |
| Rotor rear: | Shimano M4100 |
| Saddle: | Merida Comp SL V-mount |
| Season: | 2022 |
| Seat clamp: | MERIDA EXPERT |
| Seat post: | MERIDA EXPERT CC material: aluminium 34.9mm diameter 0mm setback |
| Spokes: | Black stainless |
| Tyres: | Maxxis Ikon 29x2.2" kevlar bead | |
| Wheel size: | 29" |
