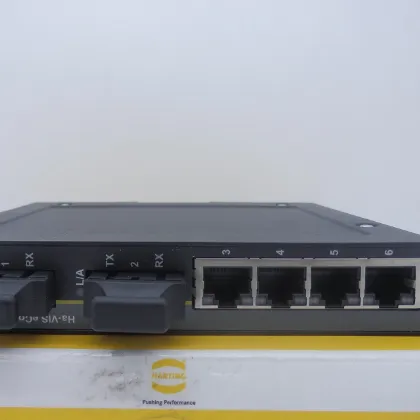

This is a Harting Ha-VIS eCon 3000 Series 6-Port Unmanaged Ethernet Switch. Its part number is 24030042100. The Ha-VIS eCon Fast Ethernet family of unmanaged Ethernet switches is equipped with up to 10 Fast Ethernet ports and allow for cost-efficient and quick expansion and/or reconstruction of network infrastructures. The slender design of the switches enables an extremely high packing density on the DIN rail. The selection includes various combinations of variants with RJ45 and fibre optic ports. Automatic detection of the transmission rate (auto-negotiation) and of the wiring of the twisted pair data cable (autopolarity and auto-MDI(X)) allow for simple plug and play. All variants are available with the temperature ranges “Industrial” and “Commercial”.
Specifications:
- Dimensions: 25 x 142 x 107.5 mm
- Mounting Type: DIN Rail
- Number of Ports: 6 Port
- Operating Temperature: -40 to 70 C
- Protocol Type: RJ45, SC
- Series: eCon 3000 Series
- Special Features: FCC CFR 47 Part 15 ; cUL US 508 listed ; DNV ; GL ; ABS ; NK
- Supply Current: 125 mA
- Supply Voltage: 10 to 60 VDC
- Type: Unmanaged Switch
