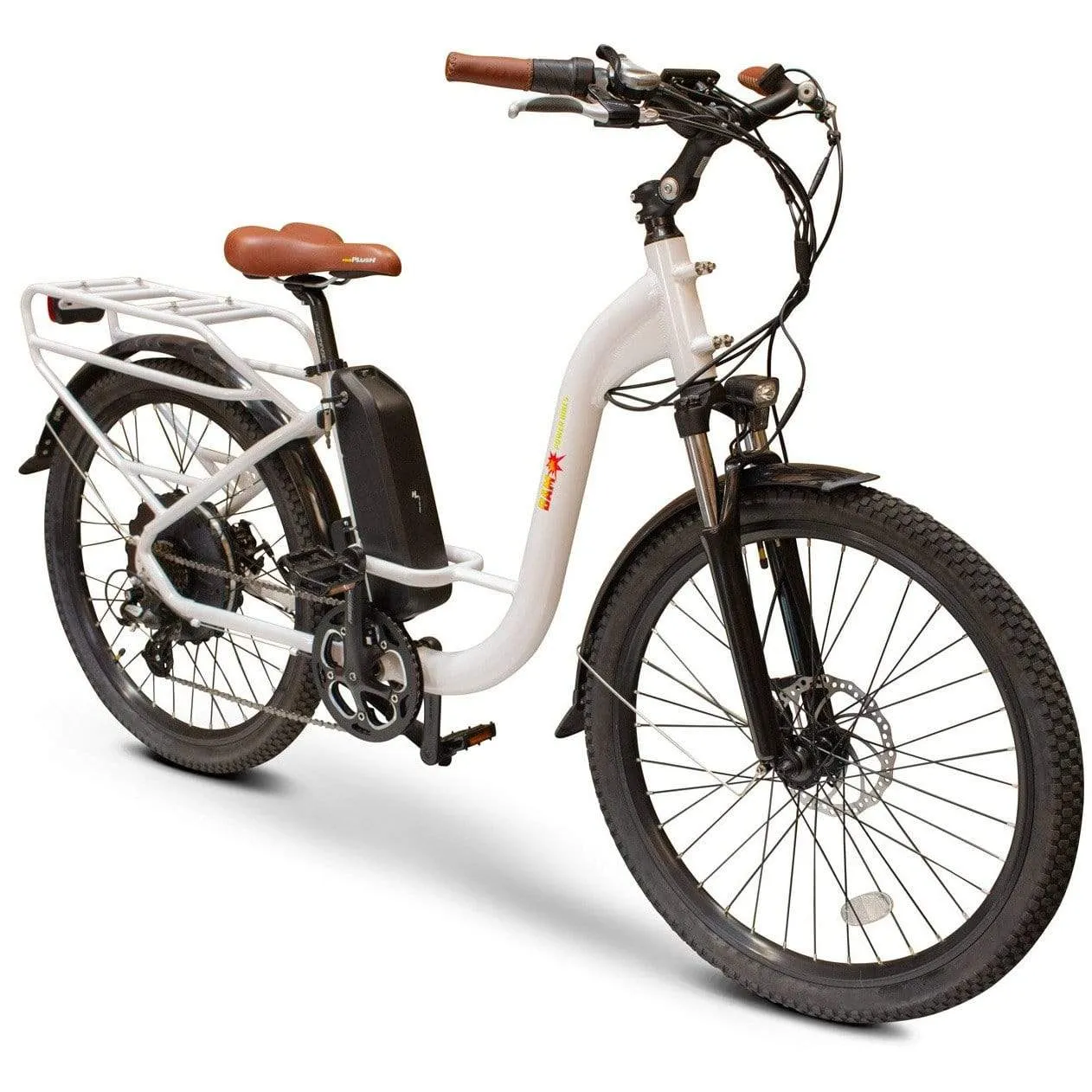

Looking for an exciting new way to get around town? Backed by our incredible 5-year warranty with all the design, performance, and quality our riders have come to expect, the Step-through is the best choice for the rider who wants easy access and ride-ability.

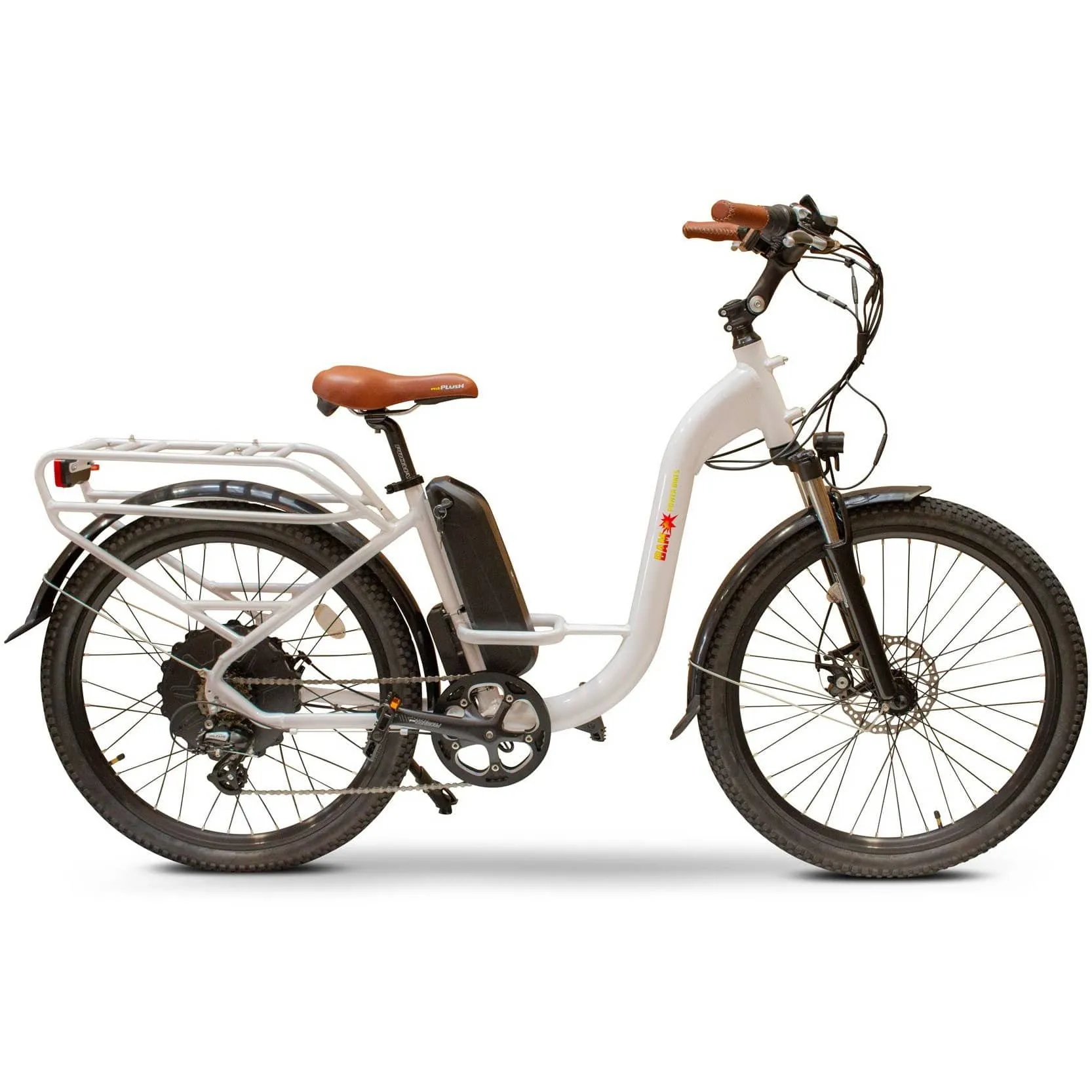

Getting around town has never been easier, or more fun, than with the BAM EW-StepThru electric bike. It’s perfect for ditching the car and getting a healthy commute to work without working up a sweat, trips to the store, or just taking a casual ride with friends. The Velo Plush seat and relaxed riding position make it a super comfortable ride and the included rear rack makes it easy to attach panniers or baskets for carrying your load without stressing your back.

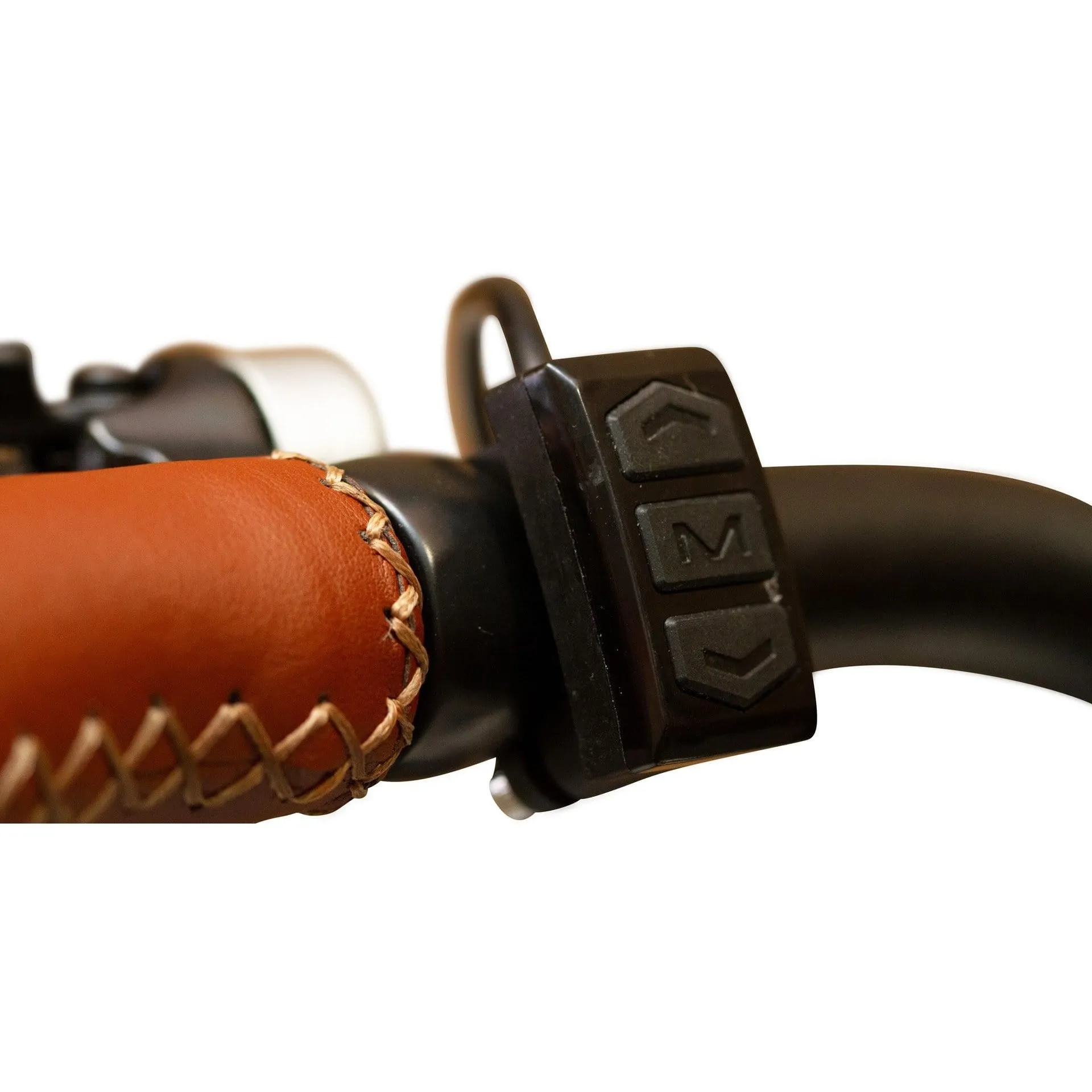

Driving your urban adventure is the 750-watt Hybrid Direct Drive Hub Motor which provides the get-up and go while at the same time providing an intelligent five-level pedal assist that gives the seven-speed gearing an extra boost, a great feature for those uphill climbs! The BAM-StepThru has a range of up to 45 miles depending on how you ride and you can rely on the high quality 14 amp hour Samsung Lithium-Ion battery to get you where you’re going. A convenient back-lit LCD display keeps you informed on your speed, distance, and battery life and can even charge your phone!
EWheels BAM Step Thru 750W, 48V Cruiser Electric Bike - Product Features

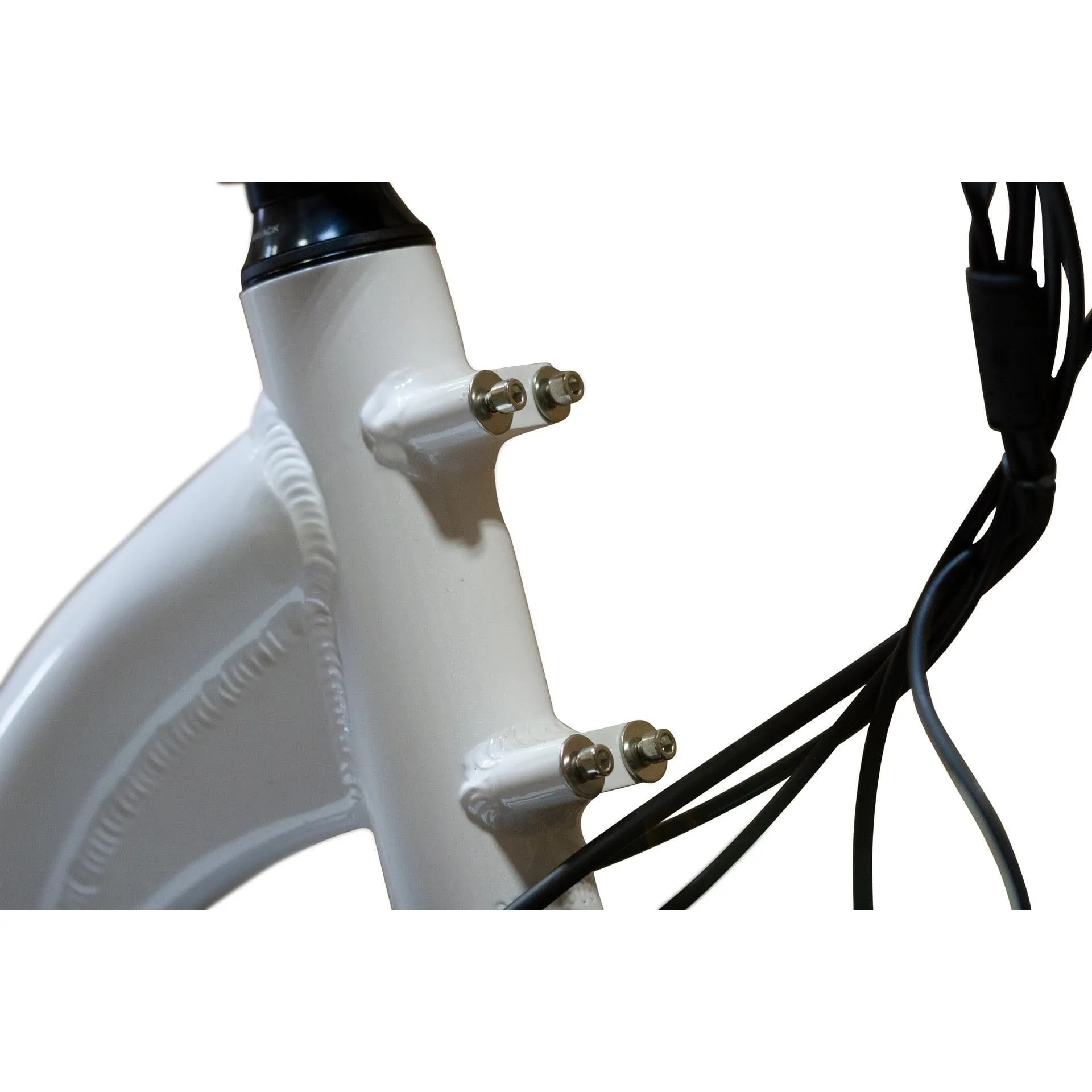

- Frame: Designed with an easy low step through frame that makes getting on/off the bike a breeze. The bicycle frame is also built-to-last using the durable 6061 Aluminum.

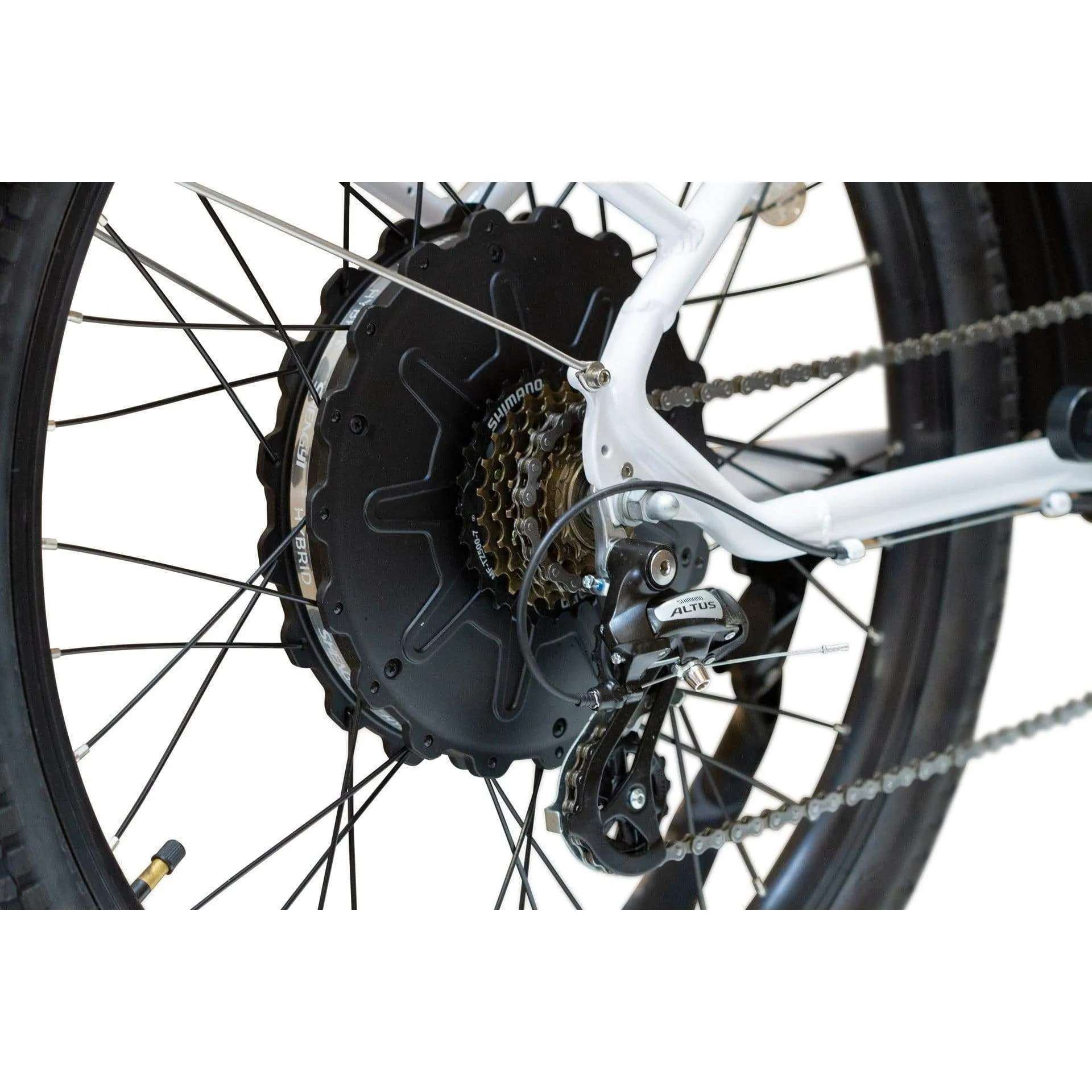

- Powerful Motor: Operates on a powerful 750 Watt Direct Drive Hub Motor to easily get you up those hills and rough road terrain.
- Battery: This EW Step Thru Bike features a 48 Volt 14AH Lithium-Ion battery (Samsung Cells) that takes you far on your rides, 25-45 Miles Per Charge depending on the rider.

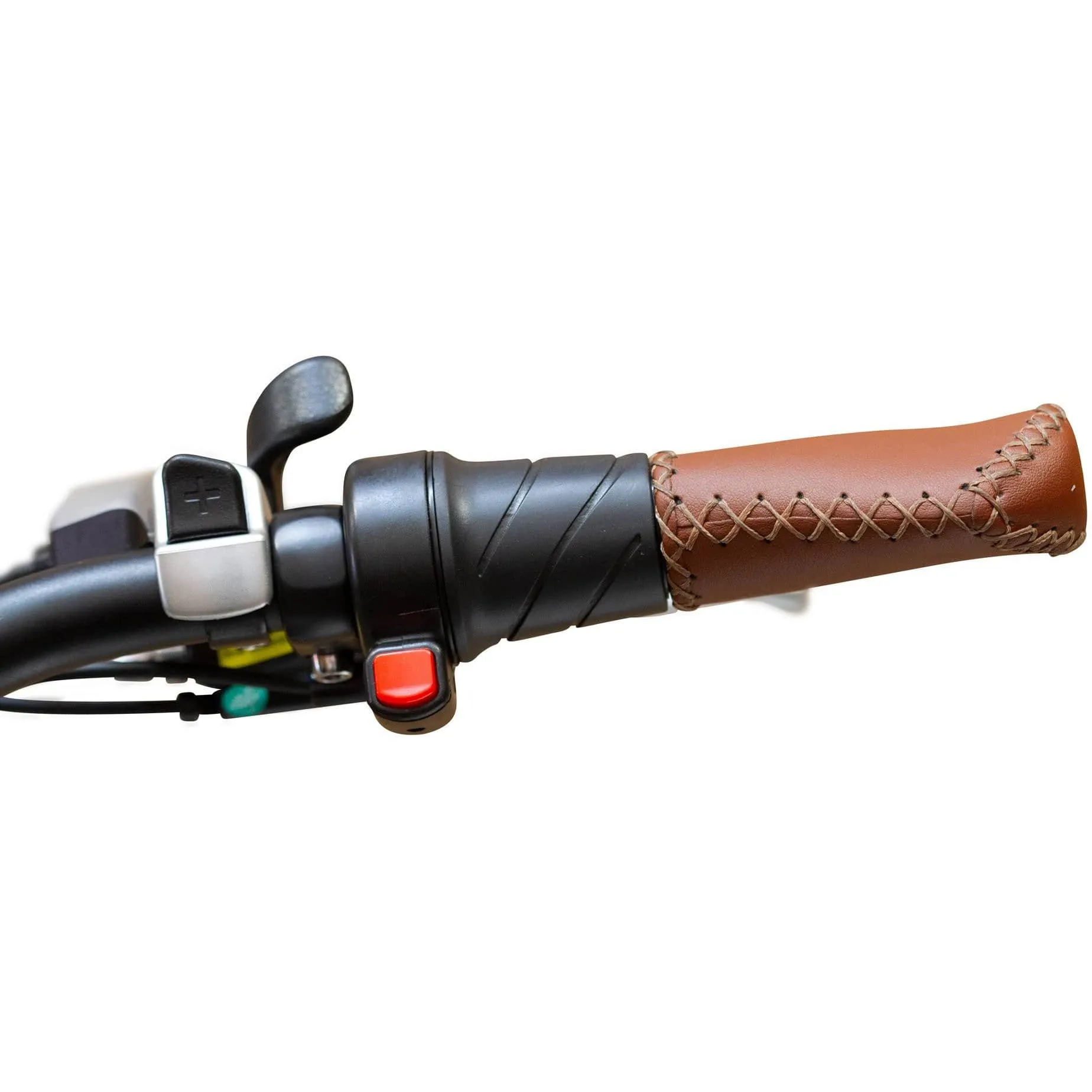

- Throttle: Easy to use Twist Throttle with an On/Off Button switch.

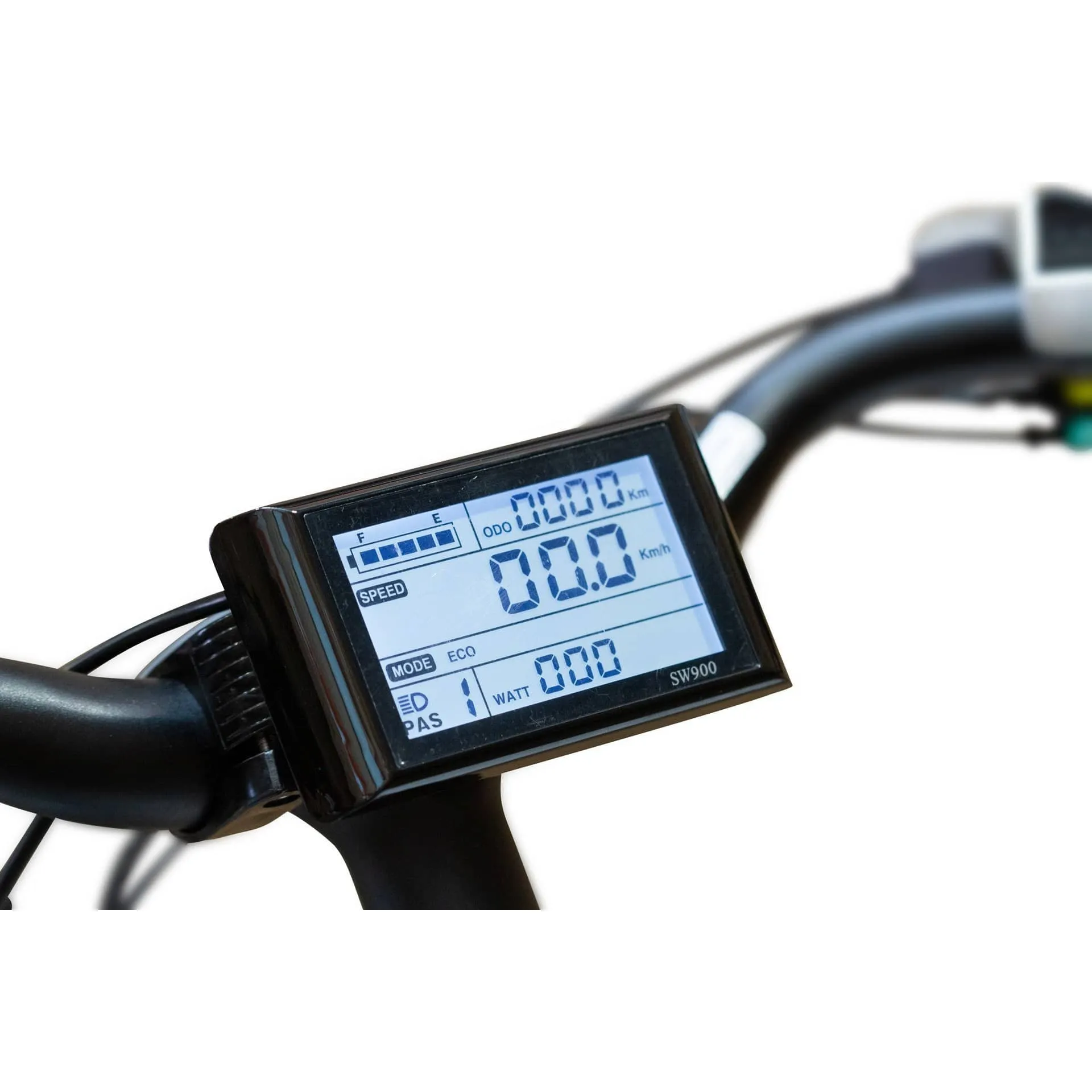

- LCD Display: Features a convenient and easy-to-use Interactive LCD Digital Display for speed, odometer, wattage, and more.
- EXTRA Features: This Step-Through Cruiser E-Bike comes with Front & Rear Fenders, Front & Rear LED Lights, Kickstand, and a Rear Rack all included at no extra cost!
We have expert support staff available. Should you feel dissatisfied, check out our easy then reach out to us for assistance.
EWheels BAM Step Thru 750W, 48V Cruiser Electric Bike - Specifications |
| ELECTRIC BIKE SPECIFICATIONS | |
| Frame Size (Inches) | 14" |
| Miles Per Charge | 25-45 Miles |
| Top Speed | 20 Miles / Hour |
| Max Torque | 40 NM |
| Motor Type | Shengyi Hybrid Direct Drive Hub Motor |
| Motor Wattage | 750 Watts |
| Battery Type | Lithium-Ion |
| Battery Voltage | 48 Volts |
| Battery AH | 14 AH |
| Battery Weight | 7.16 LBS |
| Controller | 48 Volt, 750 Watts |
| Display Type | LCD Display |
| Trip Odometer | Yes |
| Odometer | Yes |
| Speedometer | Yes (KPH) |
| Wattmeter | Yes |

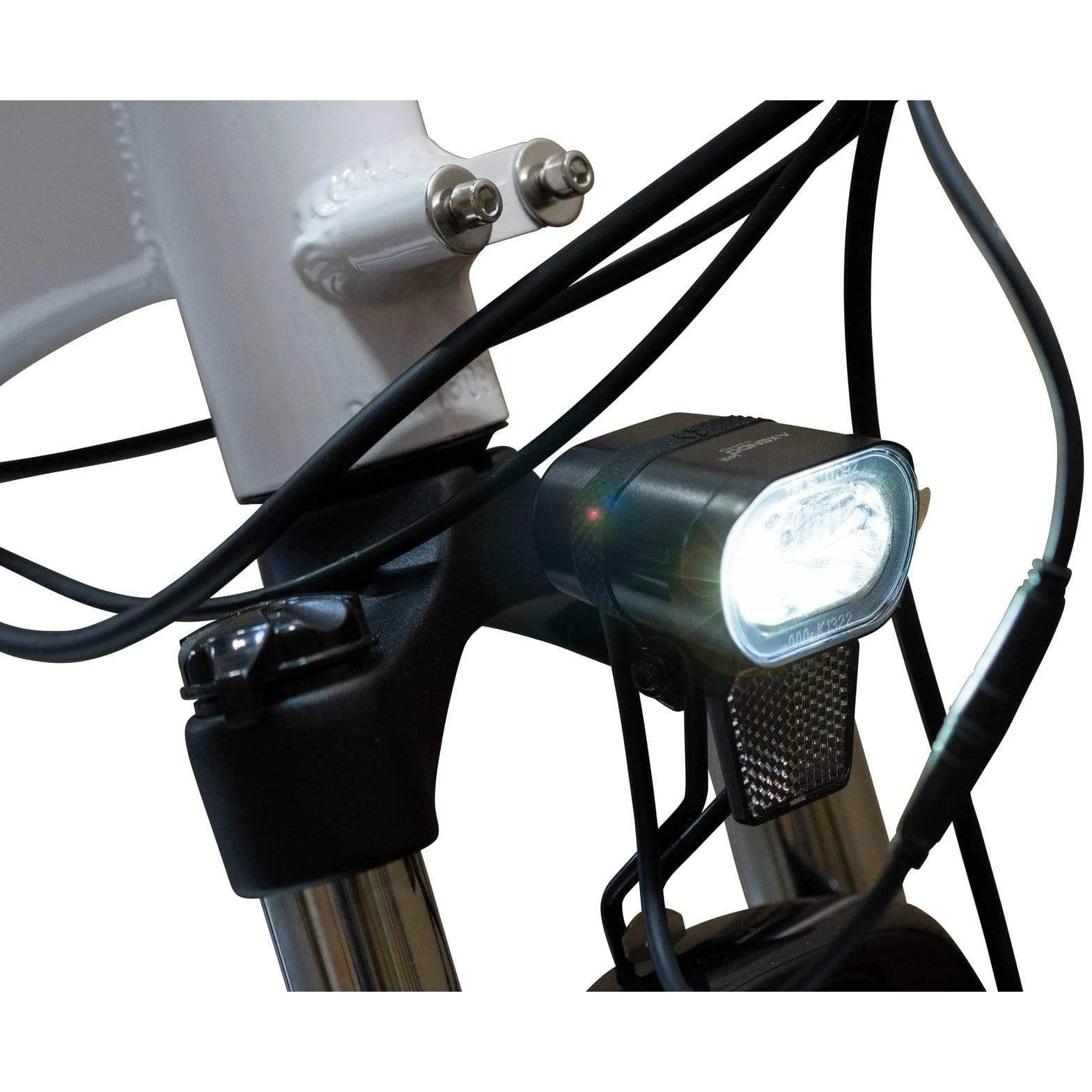

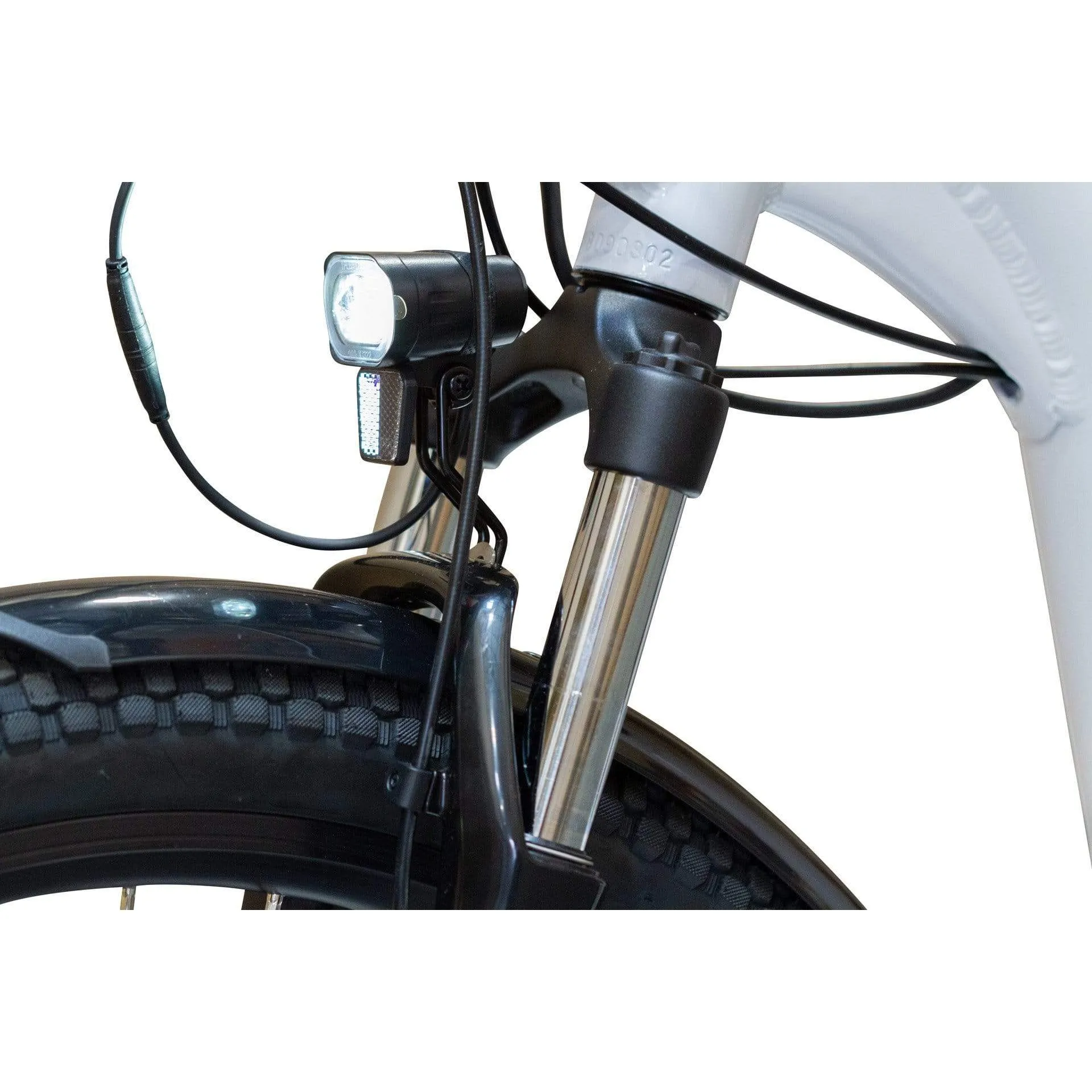

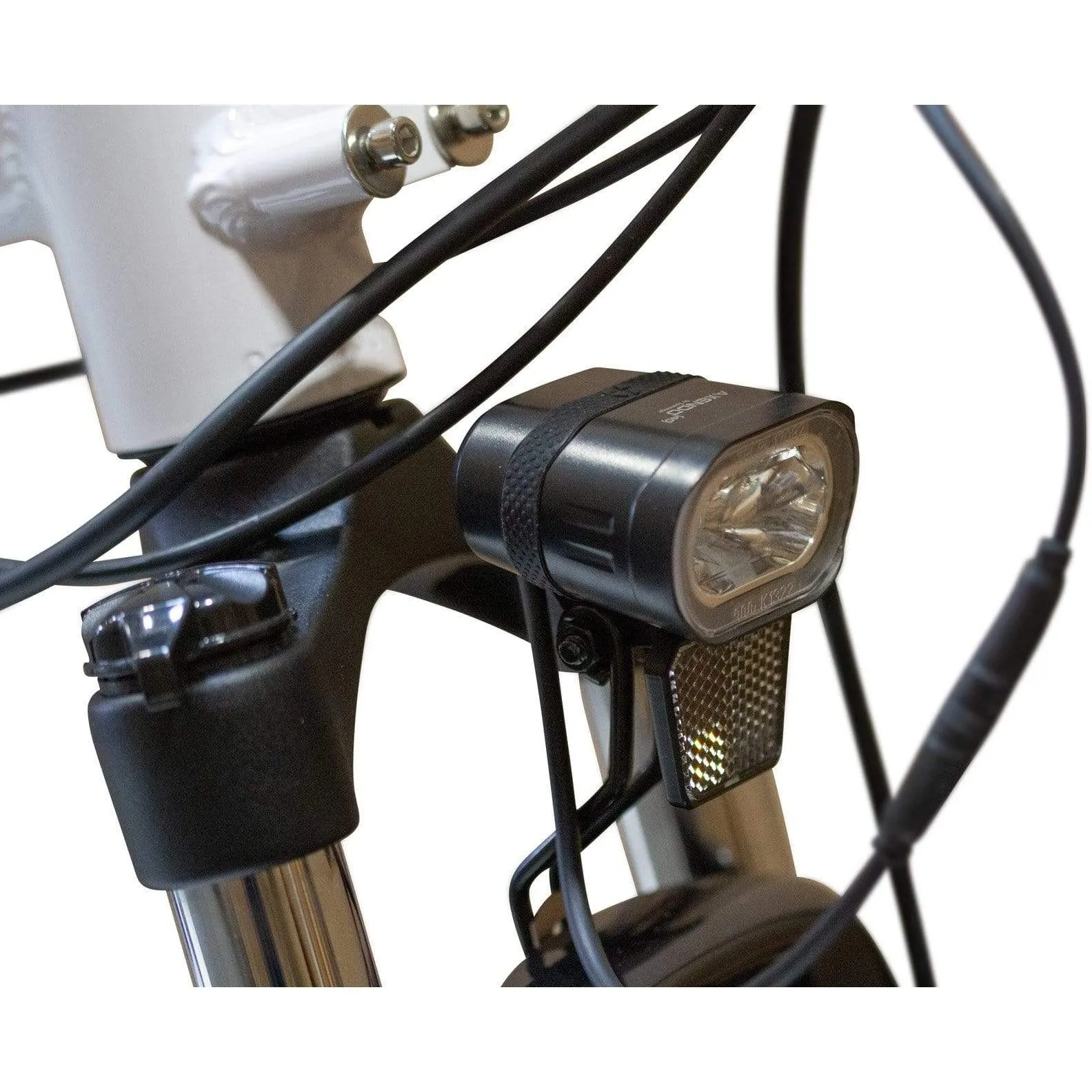

| Front Light Type | Integrated LED Headlight |

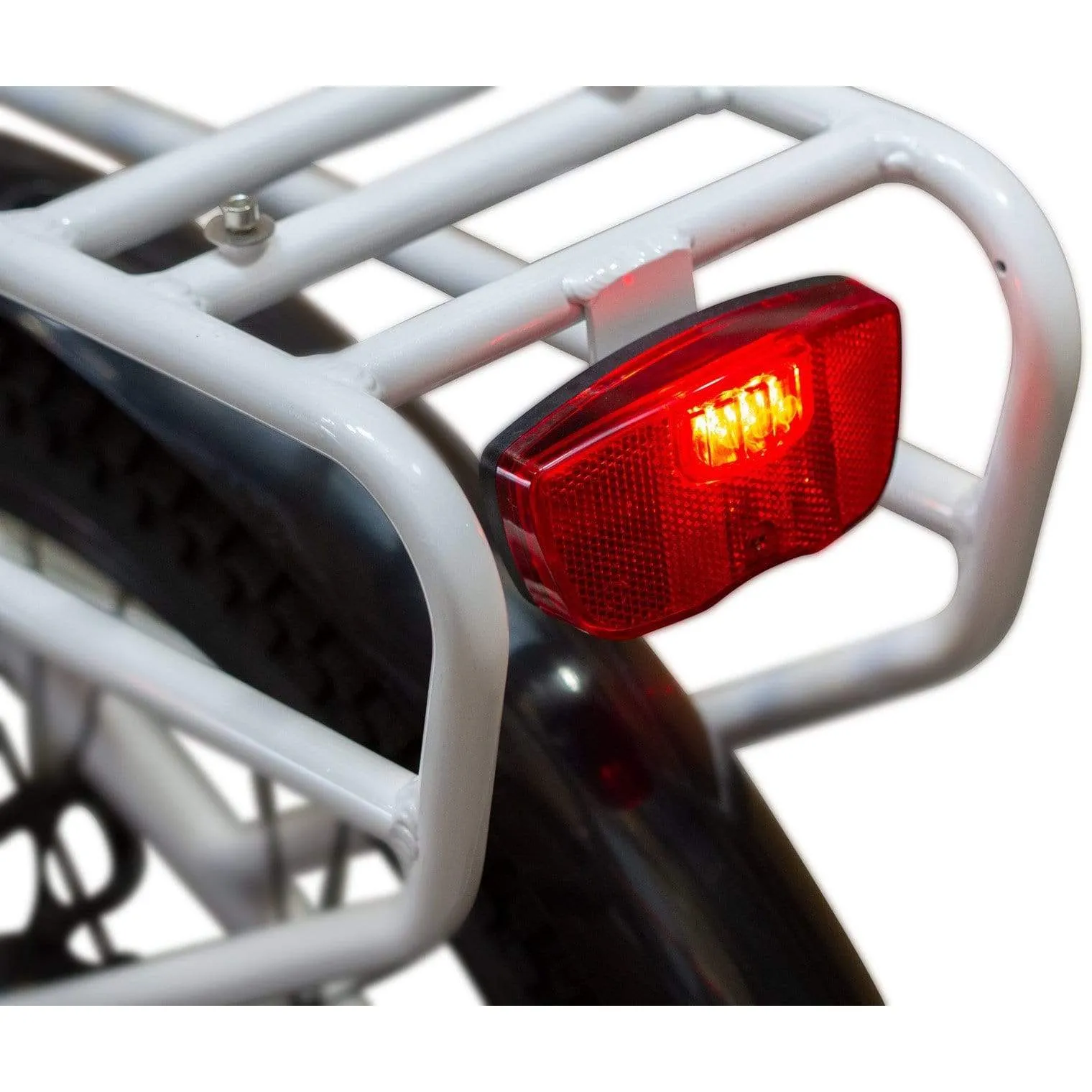

| Back Light Type | Battery Operated LED Running Light |
| Pedal Assist Type | Intelligent 5 Level Pedal Assist with 12 Magnet Cadence Sensor |
| Throttle Type | Twist Throttle with On/Off Button |
| Wiring Type | N/A |
| USB Charging | Yes |

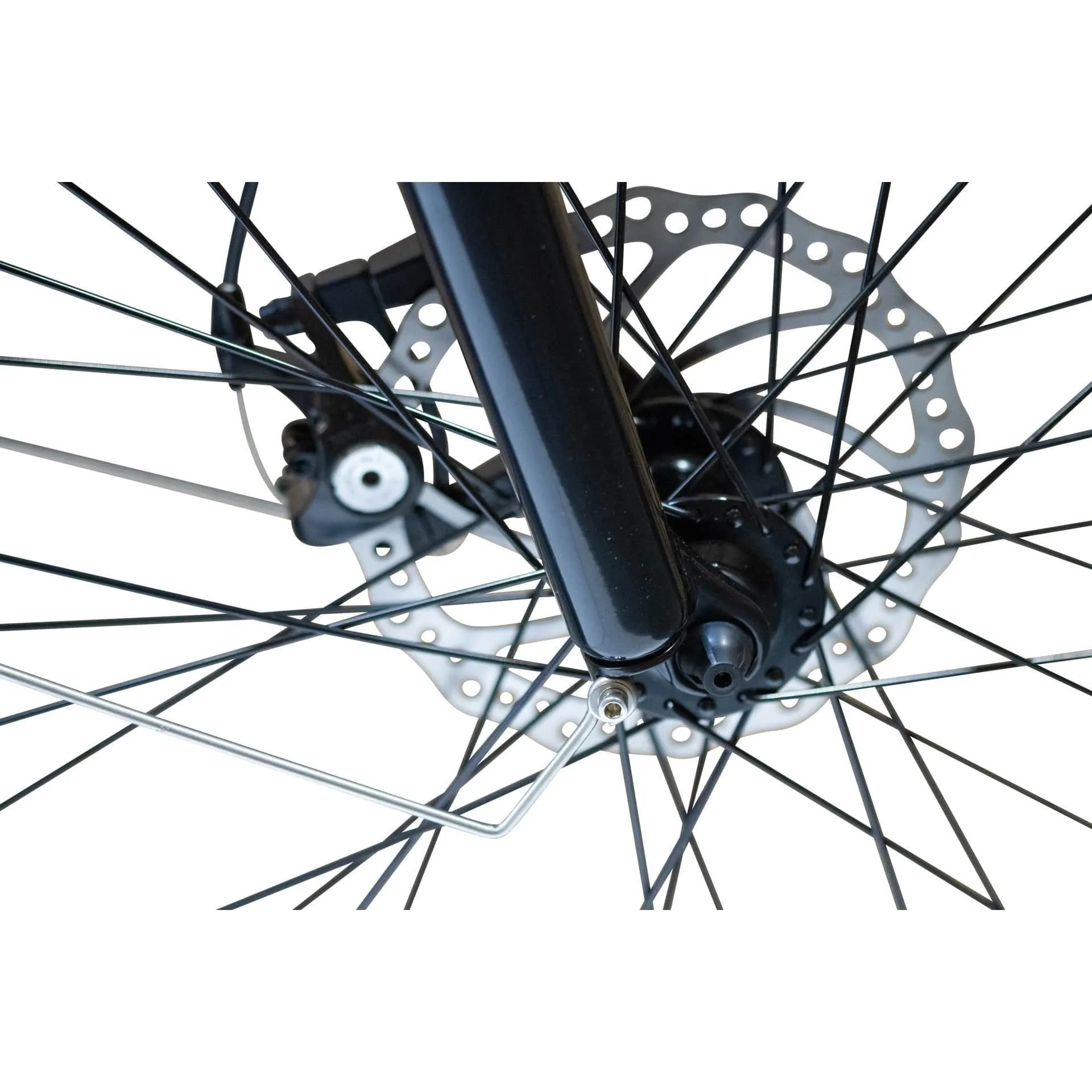

| Front Brake Type | Disc Brake |
| Back Brake Type | Disc Brake |
| Regenerative Braking | Yes |
| Charging Time | 5-6 Hours |
| MEASUREMENTS | |
| Assembled Total Length | 73" |
| Assembled Total Width | 26" |
| Assembled Total Height Lowest | 43" |
| Assembled Total Height Highest | 45.5" |
| Wheelbase | 45" |
| Stand Over Height | 18" |
| Handlebar Reach | 13.5" |
| Minimum Seat Height | 33.5" |
| Maximum Seat Height | 40" |
| Seat Adjustment Range | 6.5" |
| Minimum Handlebar Height | 43" |
| Maximum Handlebar Height | 45.5" |
| Handlebar Adjustment Range | 2.5" |
| Seat Tube | 15" |
| Seat Post Diameter | 27.2mm (1.07") |
| Crank Set Diameter | 170mm (6.69") |
| Disc Brake Rotor Size | 180mm (7.08") |
| Tire Width | 2.3" |
| Tire Diameter | 26" |
| Wheel Width | 1.5" |
| Wheel Diameter | 22" |
| FEATURES | |

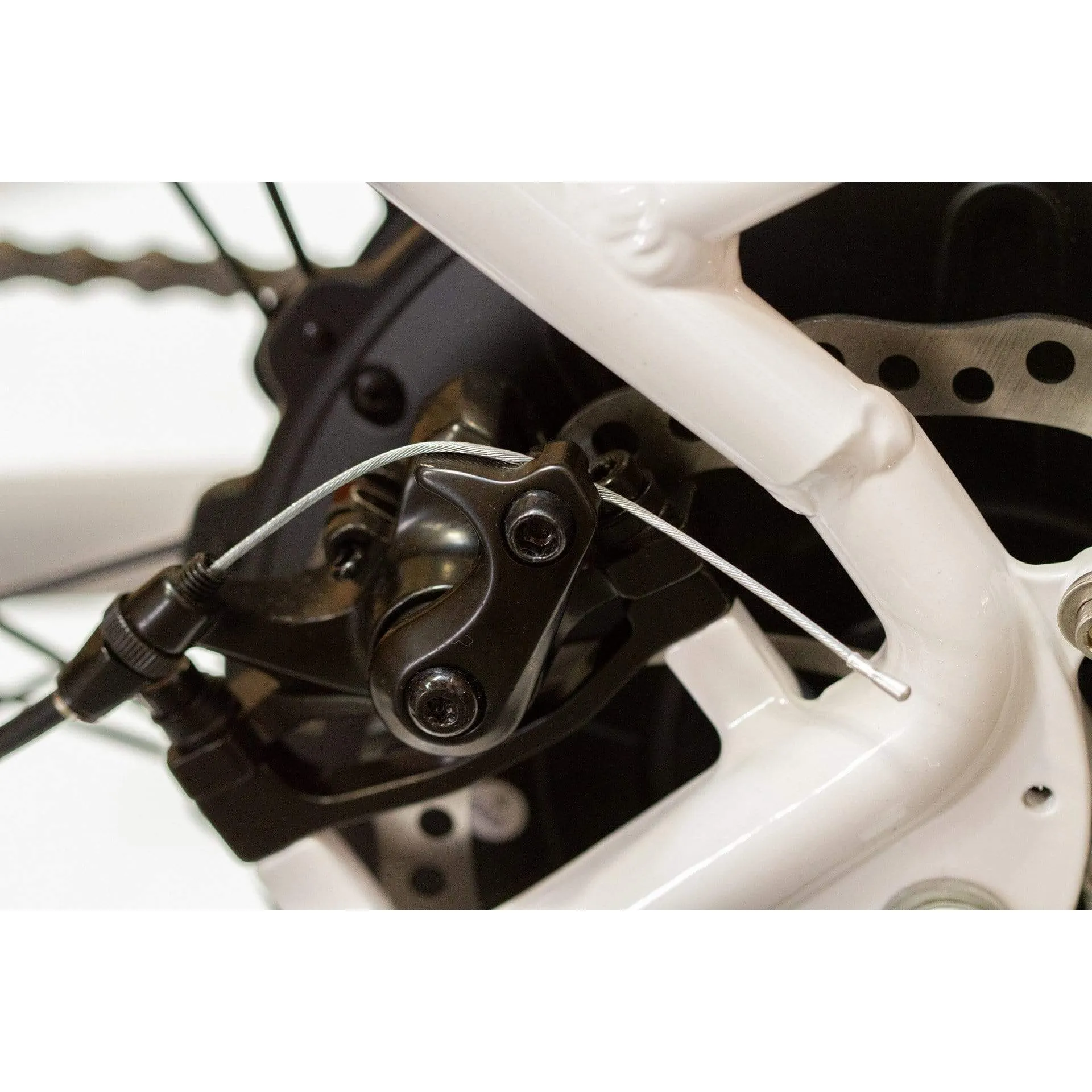

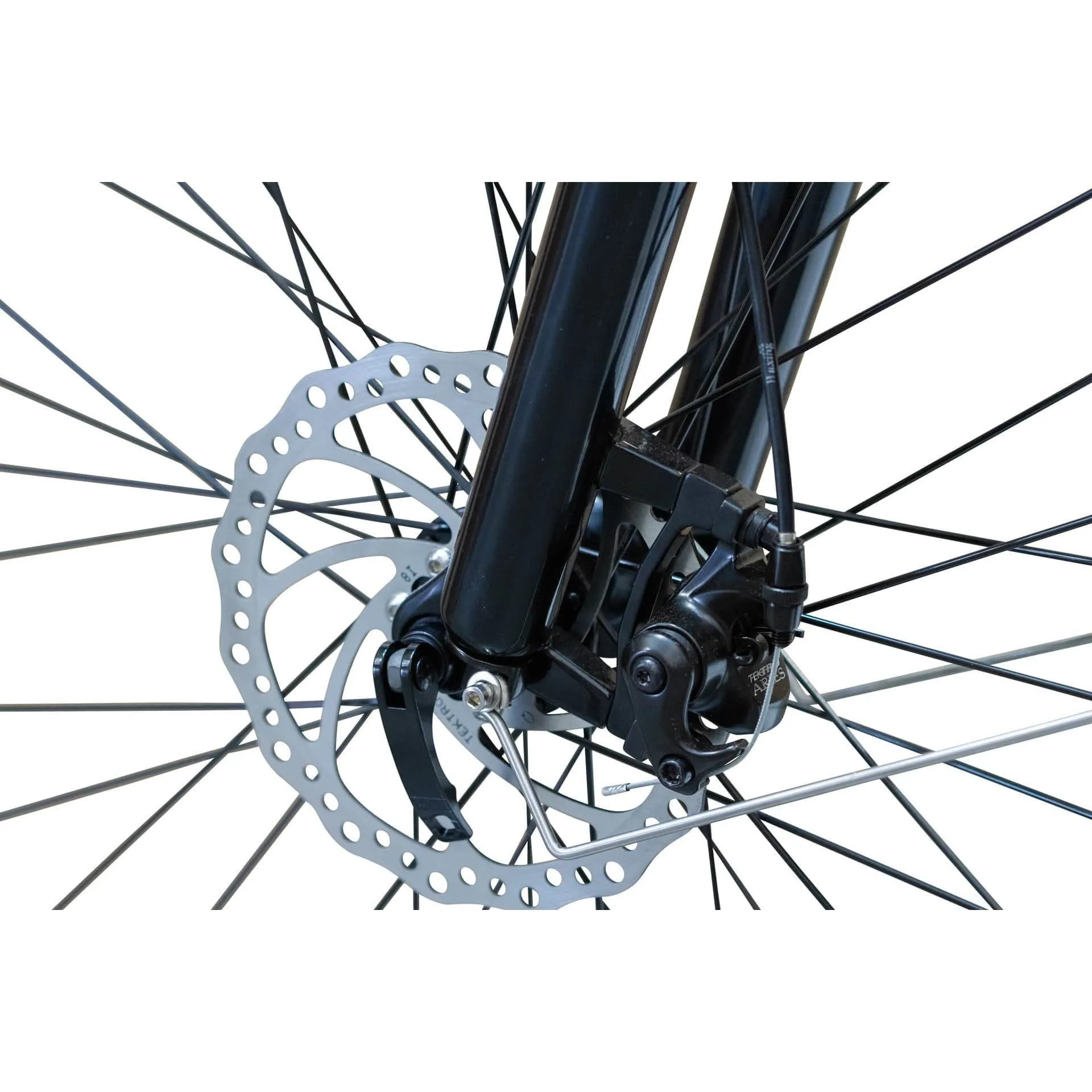

| Brake Calipers | Tektro Aries Calipers |

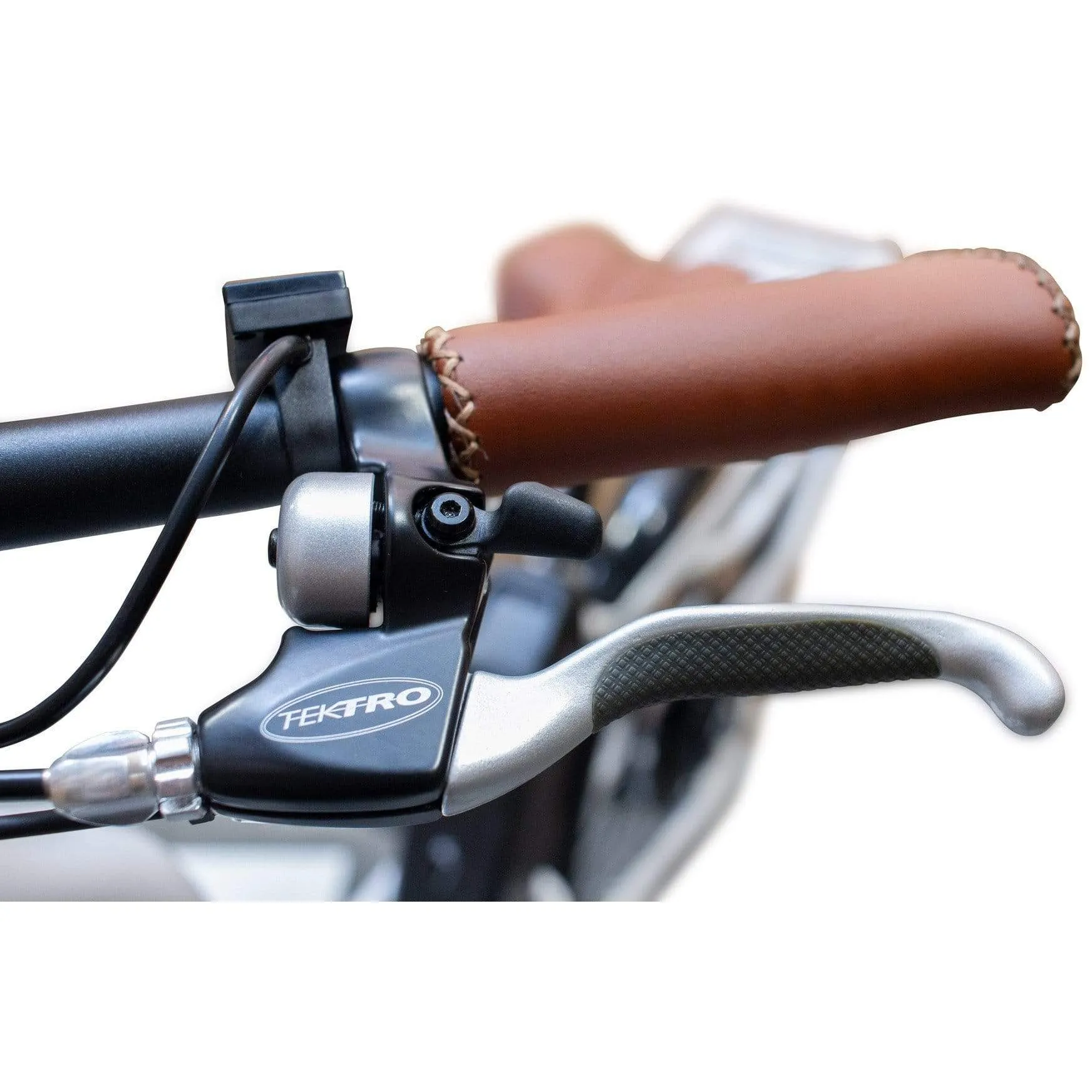

| Brake Levers | Tektro Brake Handles |
| Brake Pad Material | Sintered Metal |
| Brake Rotors | Tektro 8I Rotors |
| Chain | KMC Z Chain |
| Crank Set | 48T, 170mm ProWheel Ounce, Dual-Sided Aluminum Bashguard |

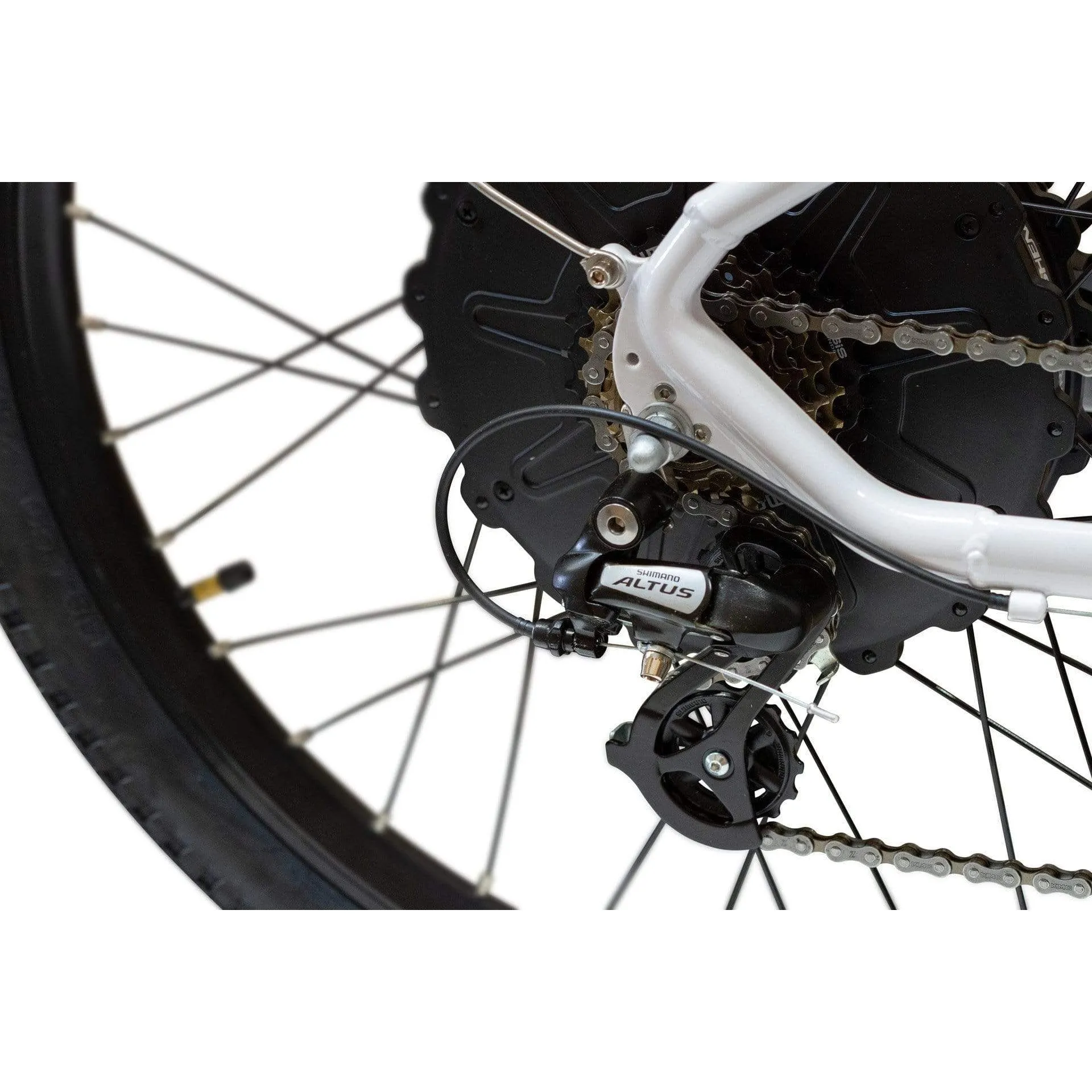

| Derailleur | Shimano Atlas Derailleur |
| Fenders | Yes (Front and Back) |
| Fork | Front Suspension Fork |
| Frame Type | 6061 Aluminum |

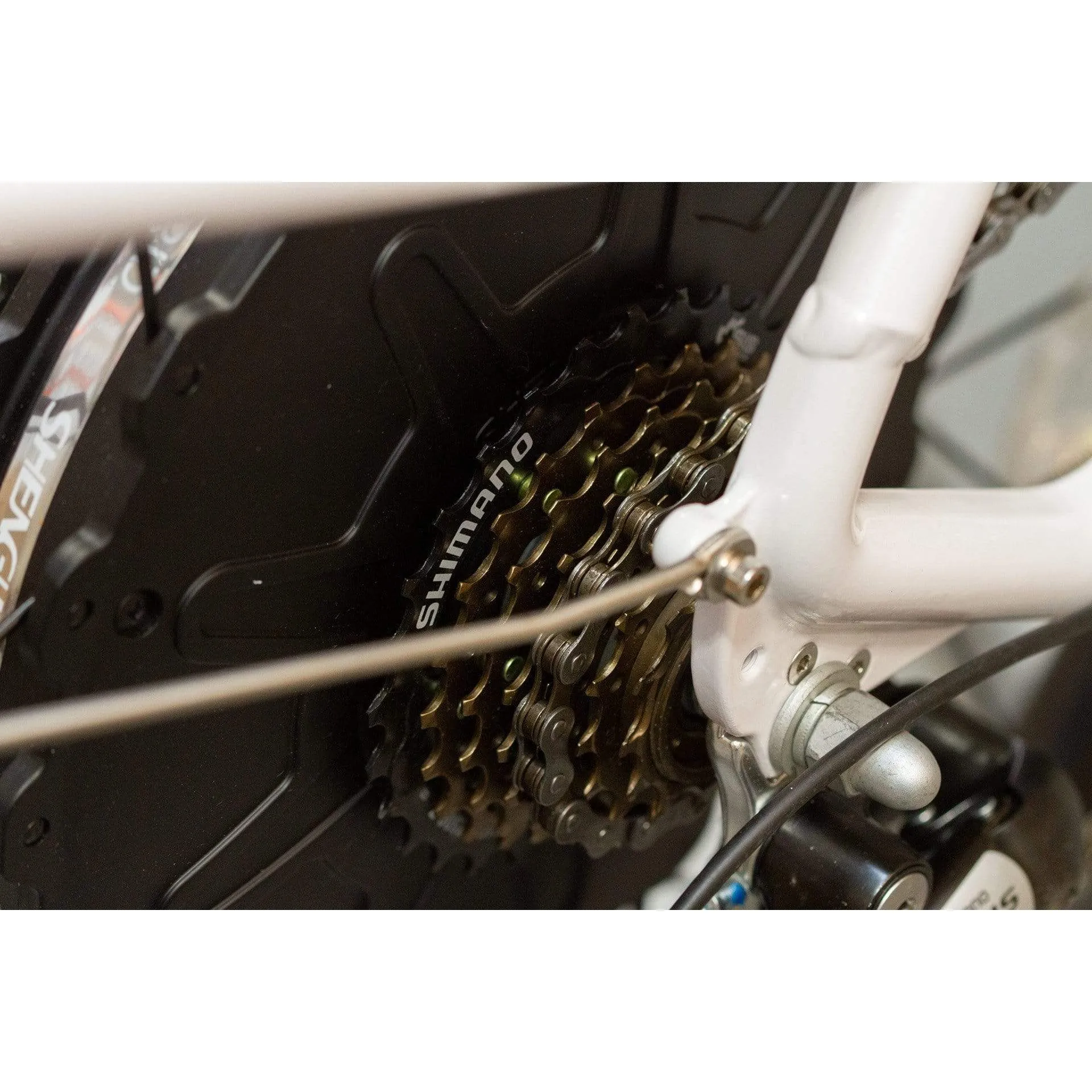

| Freewheel | DNP 7-Speed Freewheel, 11-34T |
| Gearing | 1 x 7-Speed |
| Grips | Durable Imitation Leather Ergonomic Grips |
| Handlebars | Custom Forged Aluminum |
| Headset | Semi-Integrated, 1-1/8" Straight Steerer Tube |
| Kickstand | Heavy-Duty Aluminum with Wide Plastic Foot |

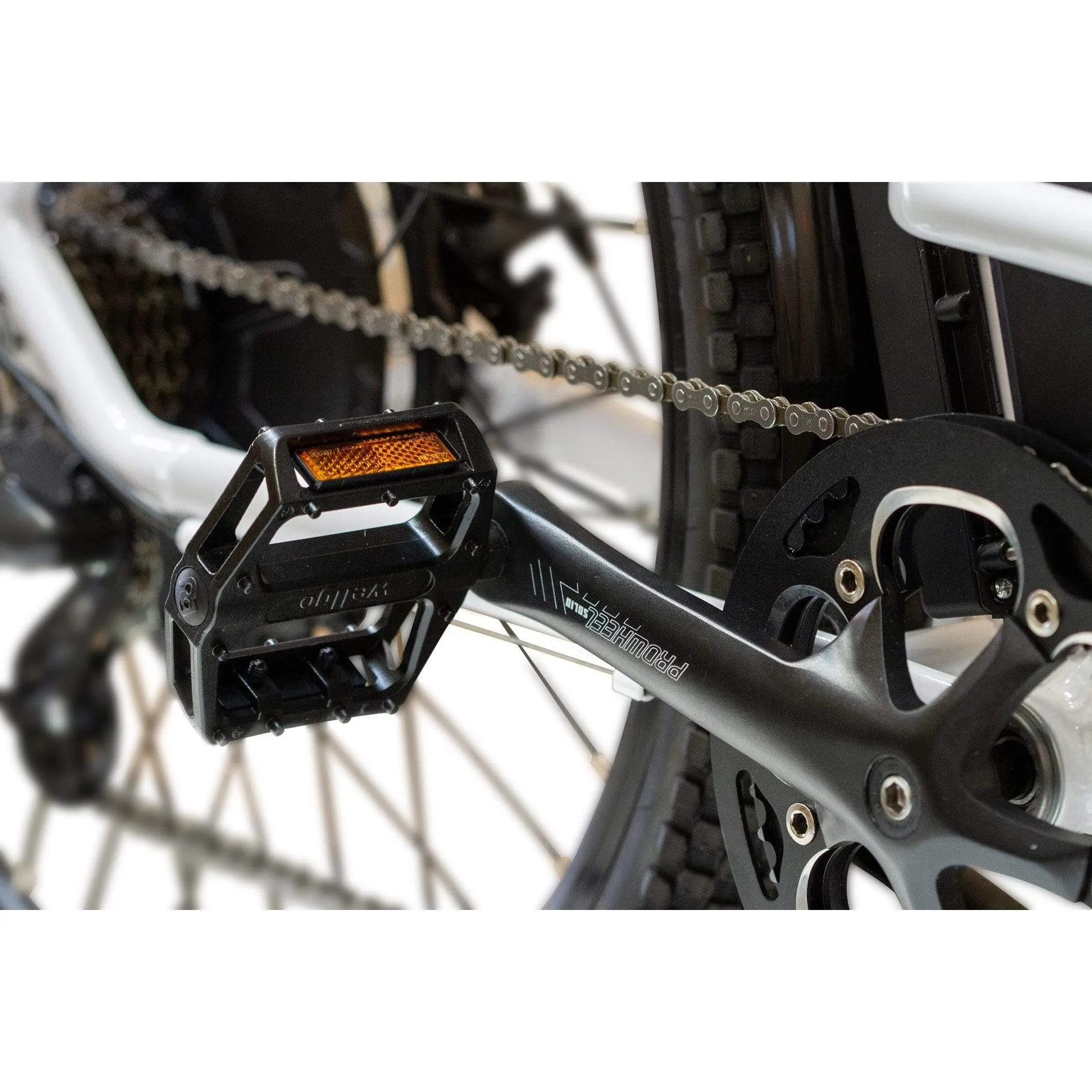

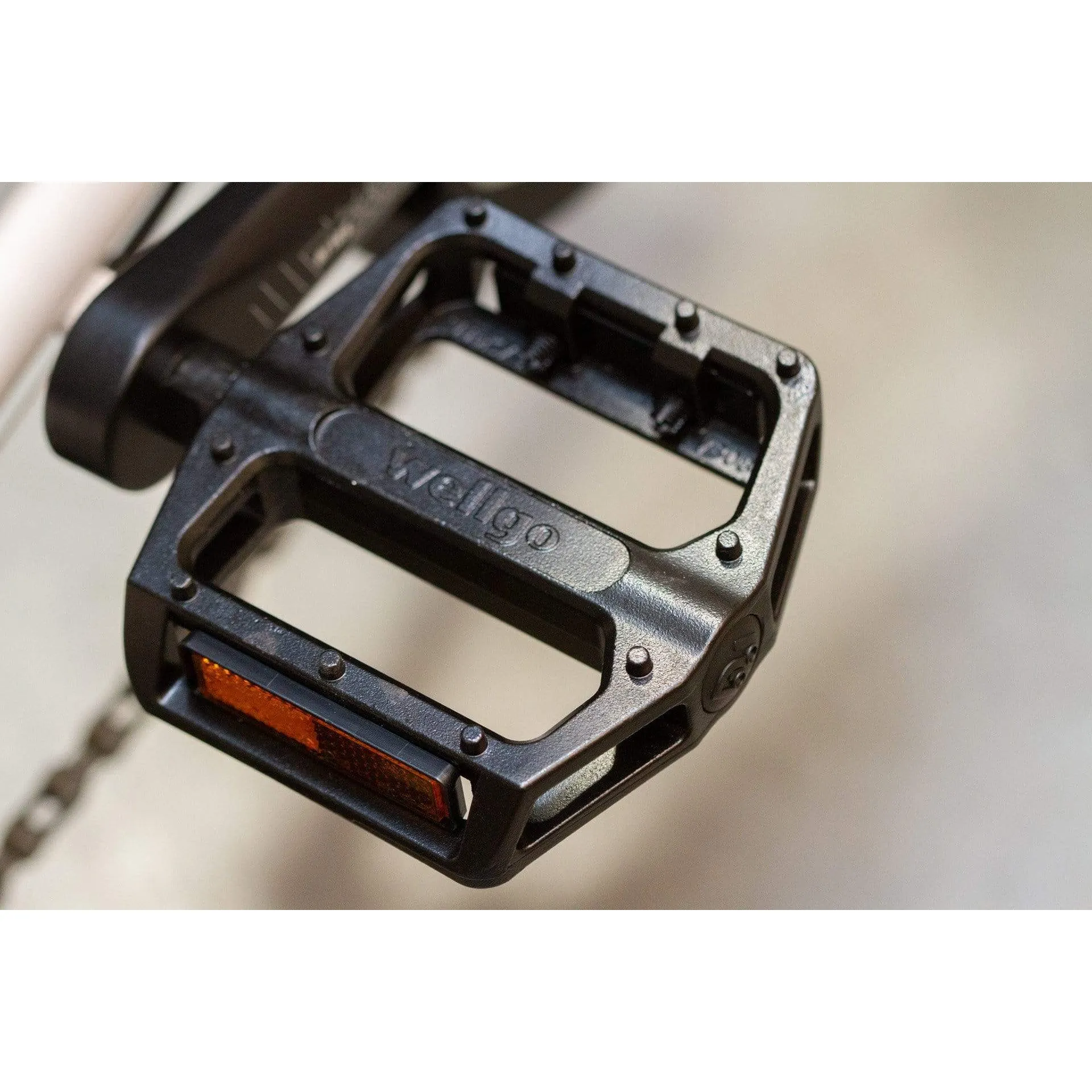

| Pedals | Wellgo VB087 Aluminum Pedals with Reflectors |

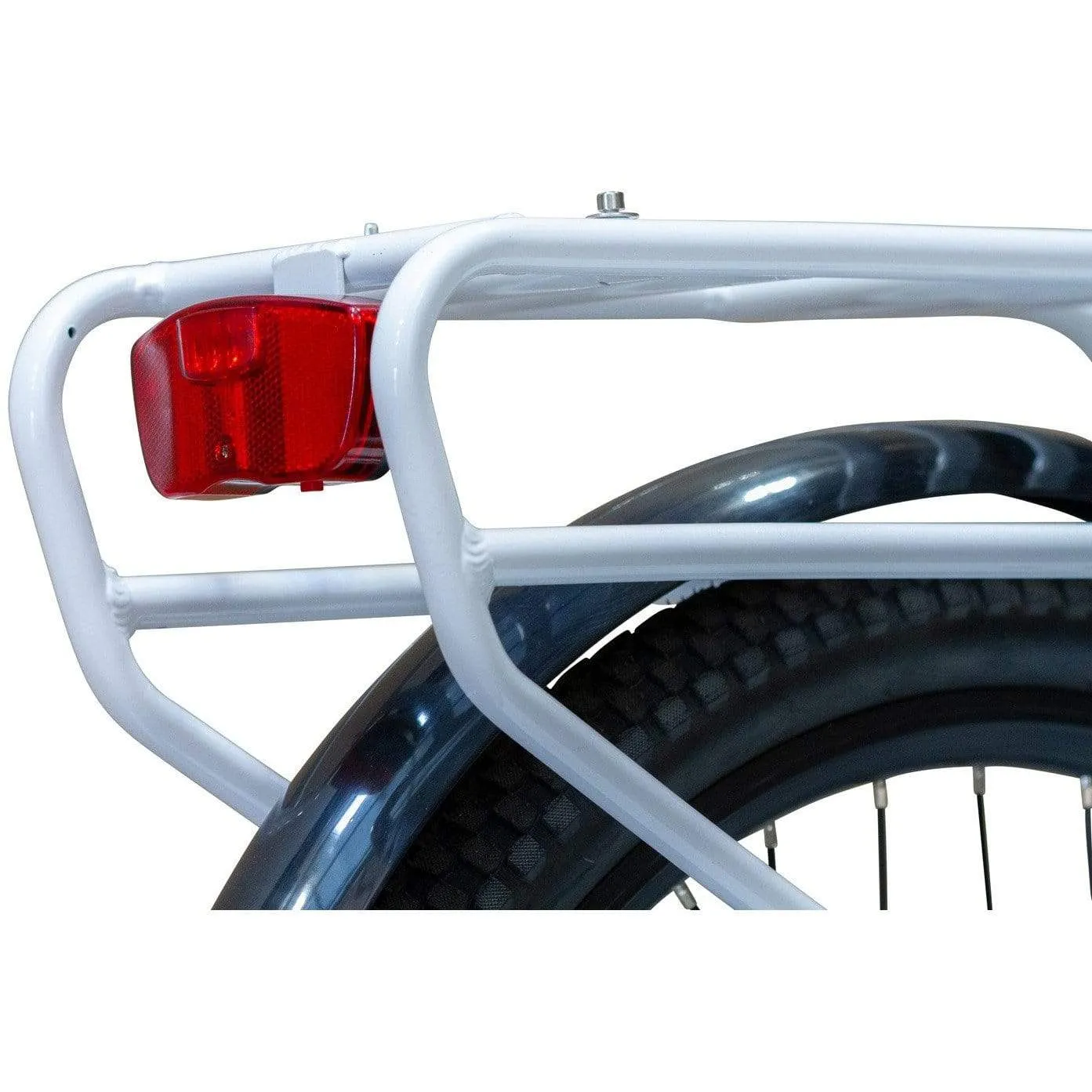

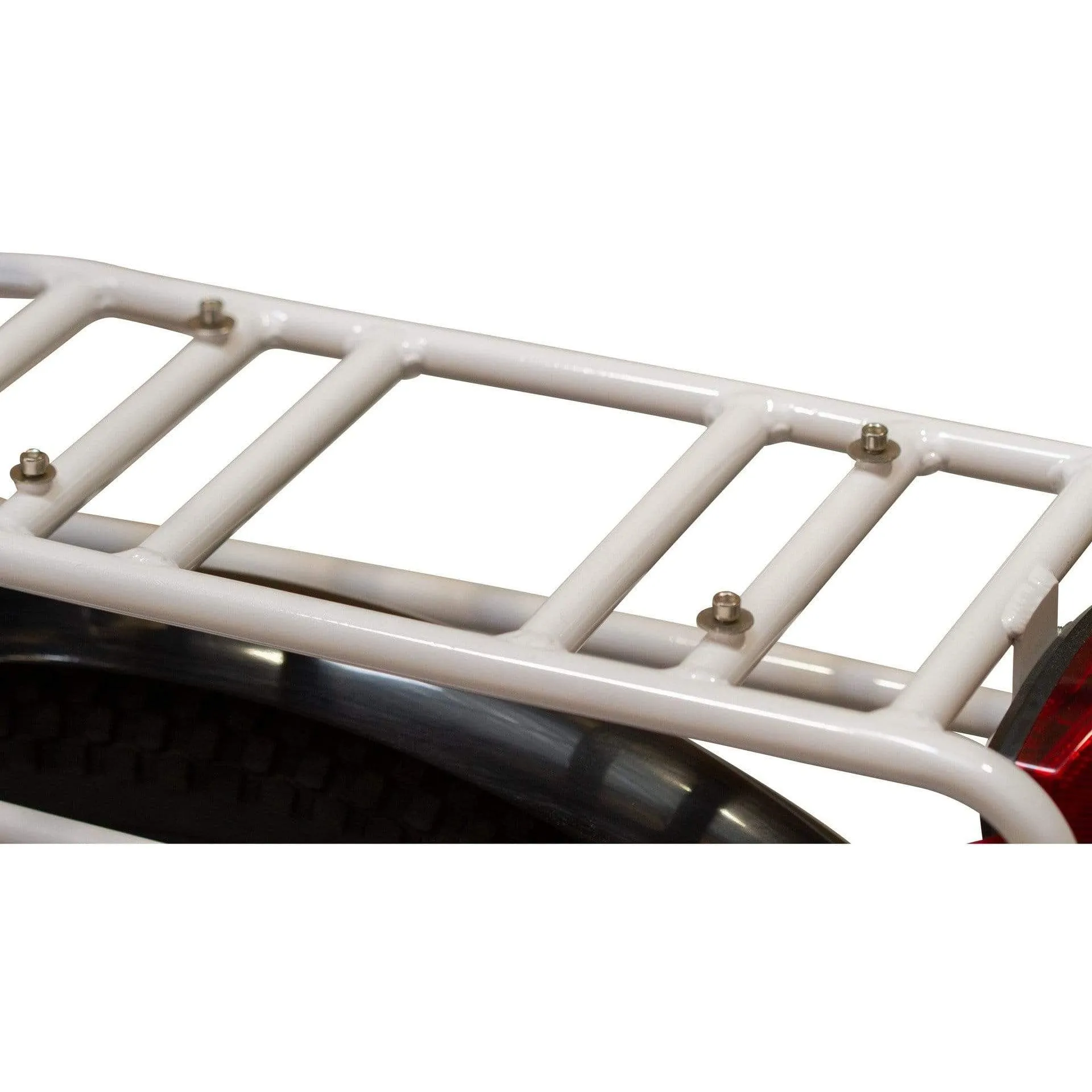

| Racks | Rear Integrated, 60LBS Capacity / Front Optional |
| Wheels (Rims) | Weinmann Goliath, Alloy, Double Wall, 36H |

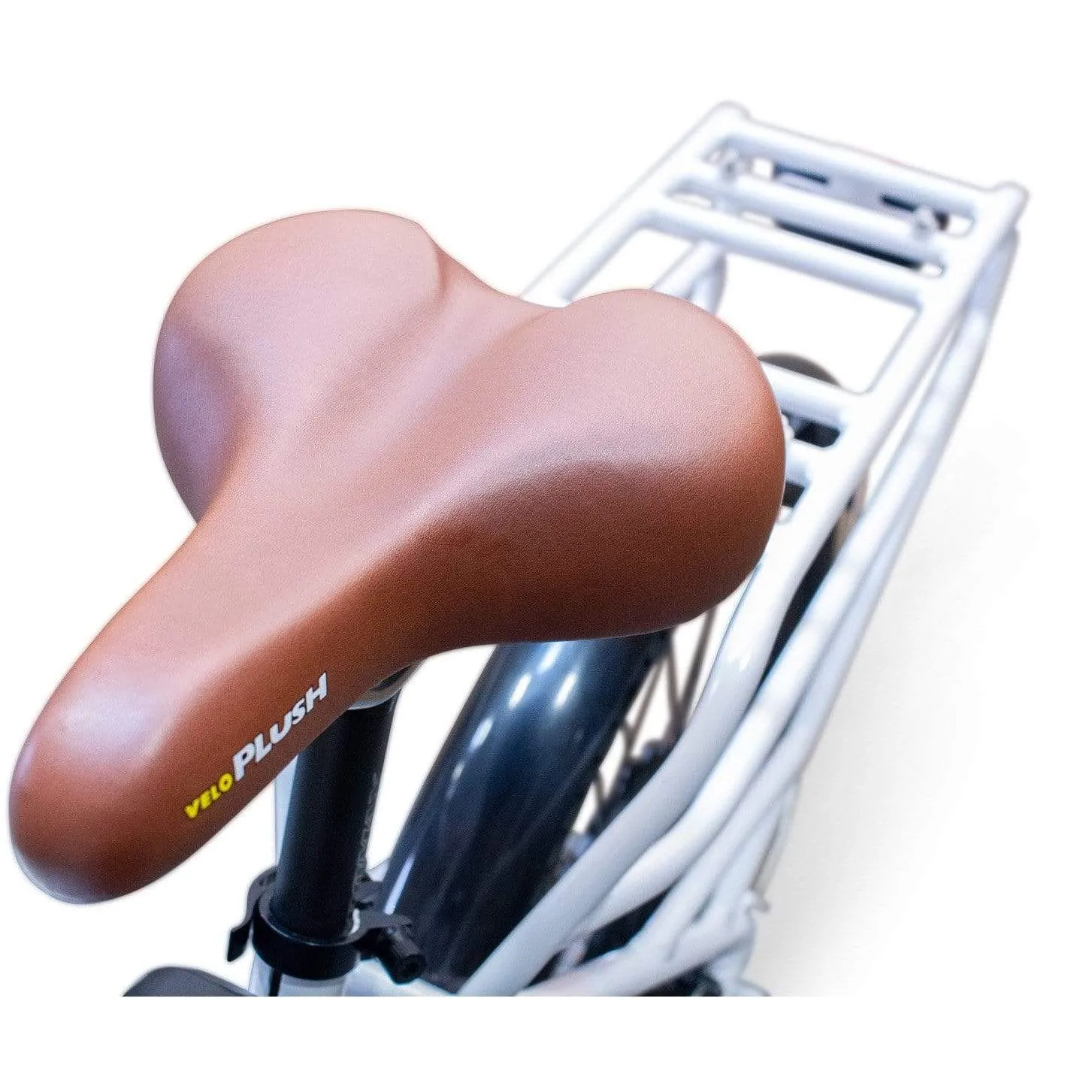

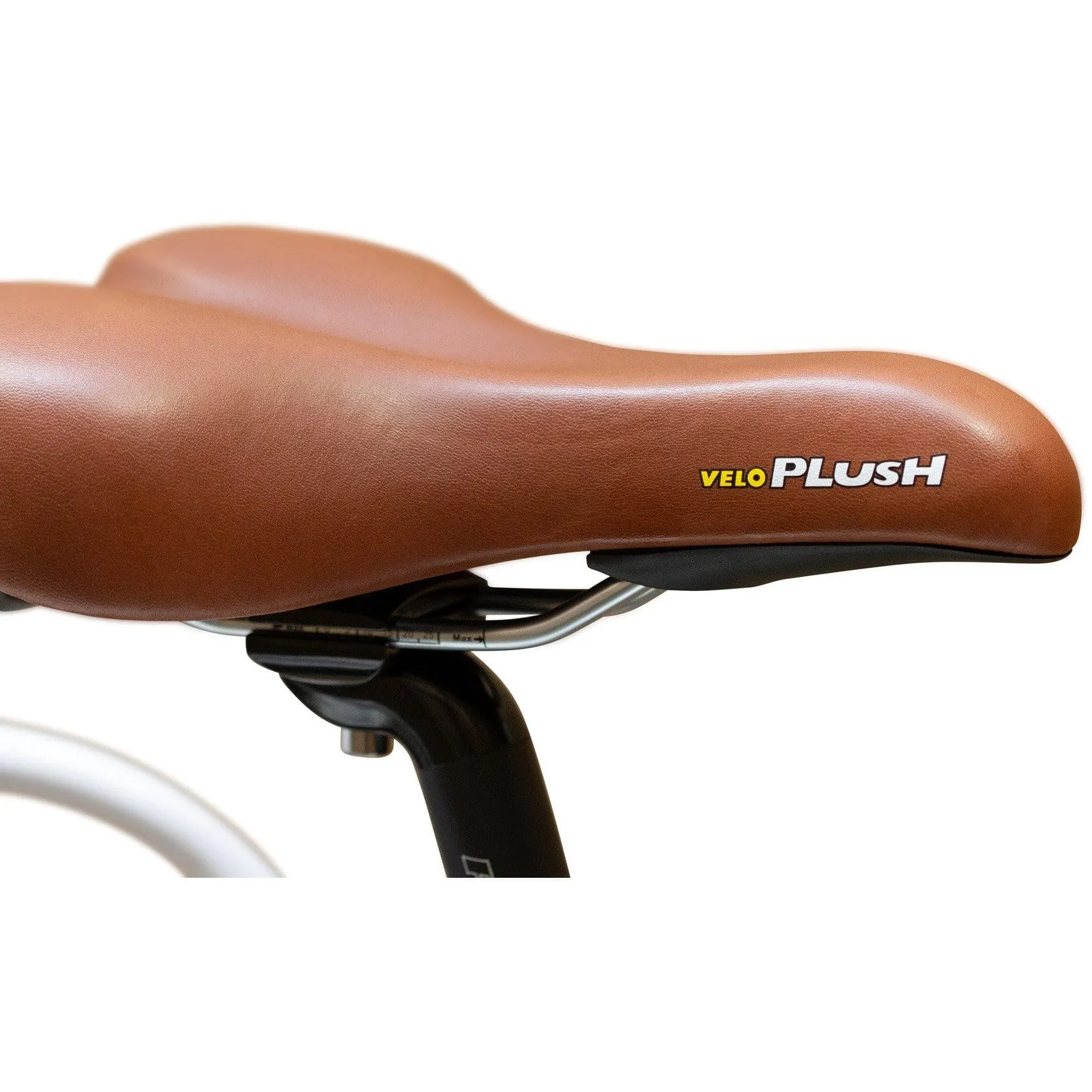

| Saddle (Seat) | Velo Plush with Lifting Handle |
| Seat Post | Promax, 340mm x 27.2mm |
| Seat Post Clamp | Quick Release |
| Shifter | Shimano 7 Speed Thumb Shifter |
| Spokes | 12 Gauge, Stainless Steel |
| Stem | Zoom, 60 Degree Angle Adjustment, 100mm Length, 88mm Height Adjustment |

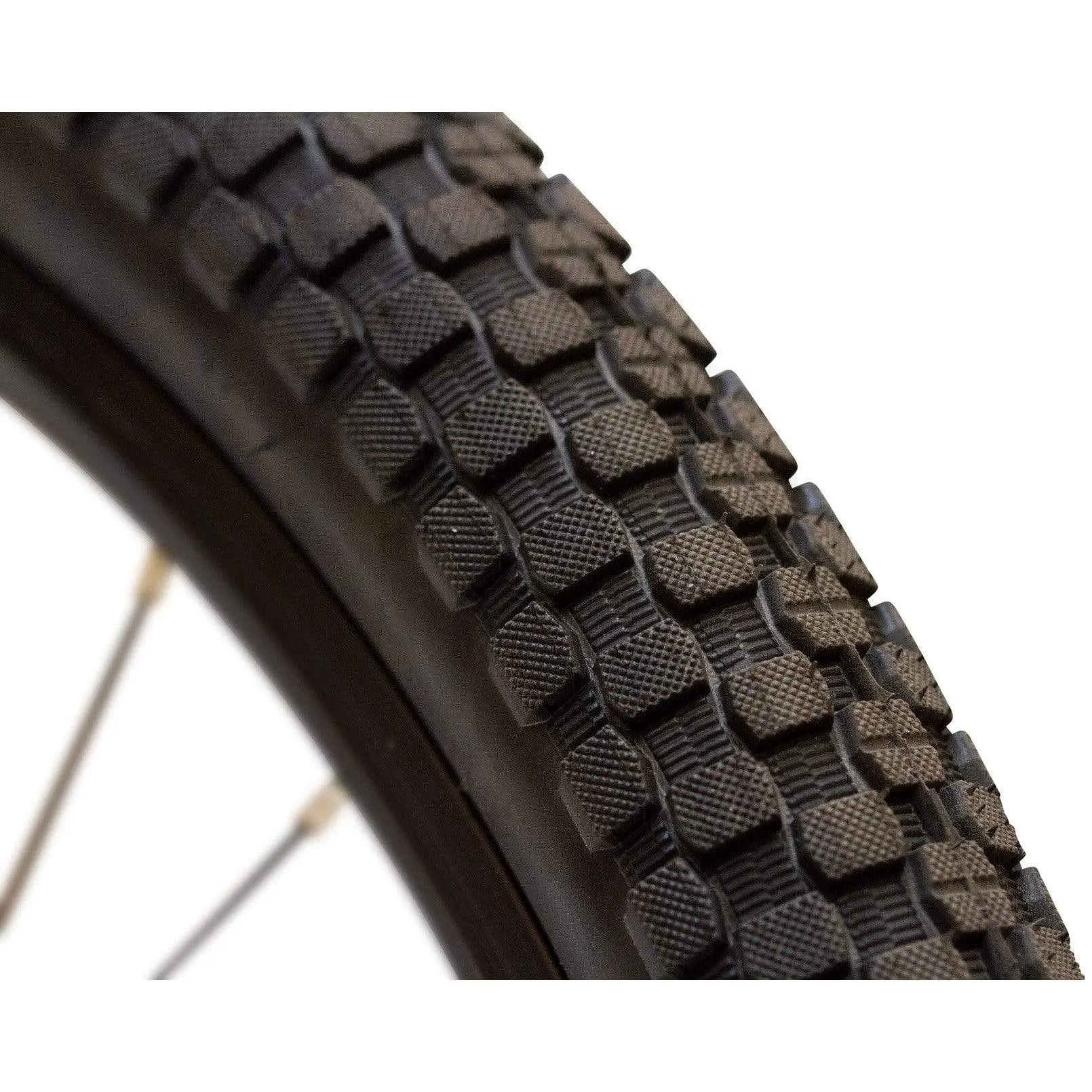

| Tires | Kendra Tires |
| Front Suspension | Front Fork Suspension |
| Rear Suspension | N/A |
| Wheel Reflectors | Yes |
| Bell | Yes |
| Integrated Rear Rack | Yes |
| Brake Handle Sensors | Yes (Left and Right) |
EWheels come with a 5 Year warranty on Frame and Structural Frame Components, 1 Year on Components (including the battery, motor, throttle, controller, LCD display, wiring, derailleur, hardware, wheel hubs, rims, pedals, kickstand, & handlebar components). Please click on the link for the EWheels warranty details.
