KEY FEATURES

Dual ES9068 D\A converter chip, independent decoding for dual channel.
The 3rd generation XMOS XU316 with higher performance and faster speed.
High precision, low jitter dual clock oscillators synchronous processing.
Up to DSD512 Native, PCM768Hz@32Bit decoding.
Optical, Coaxial and USB support MQA full decoding and rendering.
Qualcomm QCC5125 Bluetooth 5.0 module.
Fully balanced audio architecture, differential amplifier circuit and professional calibration.
High-performance headphone amp output, 16-300 ohm headphone driver.
3-inch LCD screen, with diverse VU meter modes.
Low ripple power supply to ensure a purer power source.
Exclusive mobile phone controller APP for global control.

ESS9068 DAC X2

The design avoids interference between channels effectively, reduces the noise floor to 6dB, obtains better audio indicators like signal-to-noise ratio and dynamic range etc. DSD512, PCM768@32bit and MQA hardware decoding are supported.

MQA Full Decoder

DAC-Z6 includes MQA (Master Quality Authenticated) technology, which enables you to playback MQA audio files and streams, delivering the sound of the original master recording.

Differential Amplification Circuit

DAC-Z6 analog audio circuit is fully balanced differential amplification circuit design, which is made up of several operational amplifiers. DAC connects to all analog outputs including XLR, RCA, headphone jack through the circuit.

RCA and XLR Separate Output

In order to reduce the possible signal interference of the RCA and XLR simultaneous output, DAC-Z6 RCA and XLR are output separately to achieve higher audio indicator and better audio performance. For sure, RCA and XLR can be output at the same time by setting manually.

Qualcomm Bluetooth Module

DAC-Z6 Bluetooth audio receiver adopts Qualcomm QCC5125 module. It is Bluetooth 5.0 supports SBC/AAC/aptX/aptXLL/aptX HD Bluetooth audio protocol. Enjoy CD quality music conveniently by connecting mobile phone, tablet and computer.

Multifunctional Knob

The knob on the front panel is multifunctional, not only can be used for volume adjustment but also for menu selection, such as, input source switching, output selection, filter modes, UV meters etc. The embellishment of ambient light looks scientific and technological.

IN THE BOX

DAC-Z6
Remote control*1
Power cable*1
User manual*1

SPECIFICATIONS

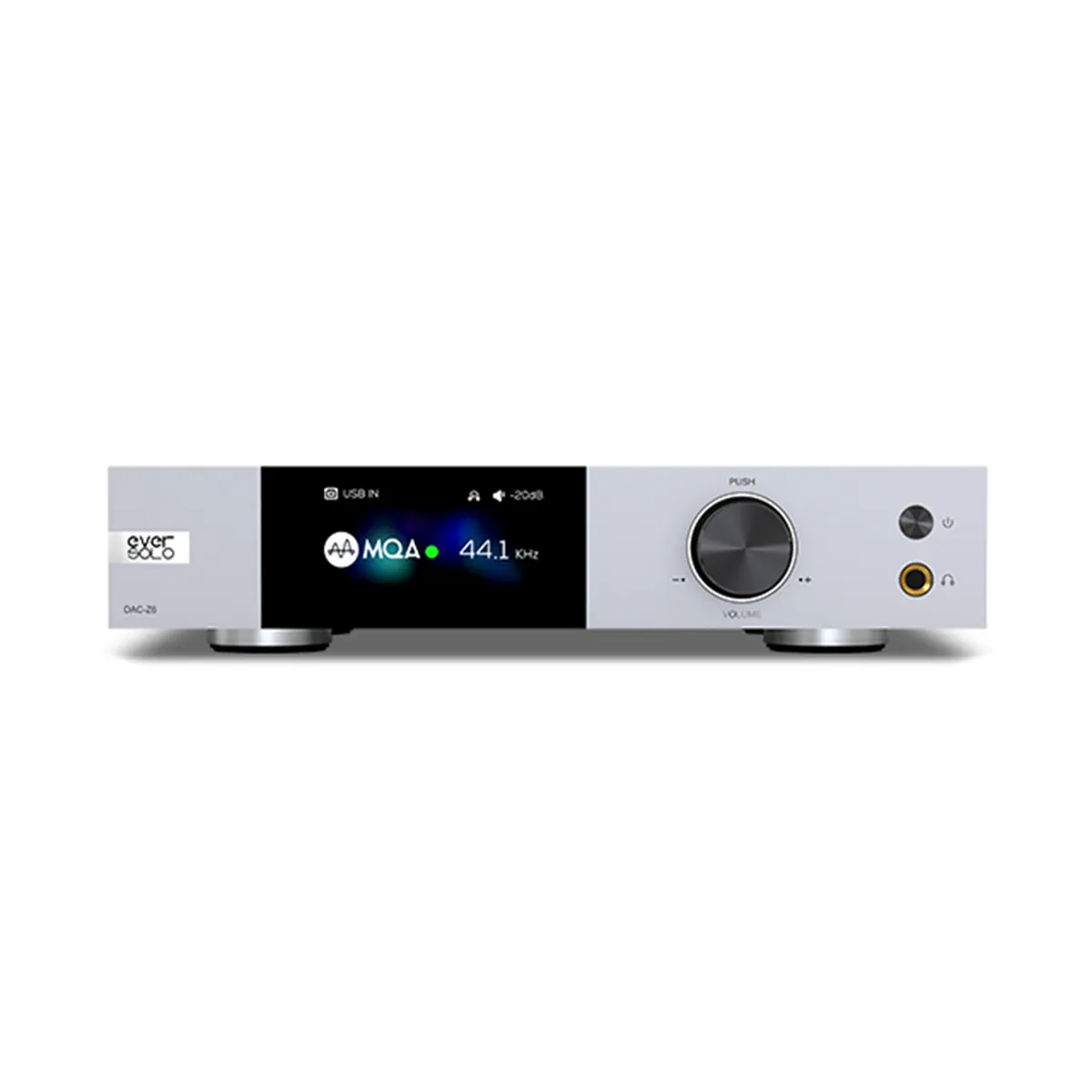

Model	EverSolo DAC-Z6
Display Screen	3-inch LCD screen
Chassis	Aluminum Alloy
DAC	ES 9068*2
XMOS	XU316
OPA Chip	RT 6863*6
Power Supply	Switching power supply
Bluetooth Audio Input	Qualcomm QCC5125 Bluetooth module, BT5.0 Support SBC/AAC/aptX/aptX LL/aptX HD Bluetooth protocol
USB-B/USB-C DAC Input	Compatible with Windows (7, 10), Mac, Android and IOS Up to stereo DSD512, PCM 768KHz 32Bit, MQA
OPTICAL/COAXIAL Audio Input	Up to stereo PCM 192Khz 24Bit, DSD64 Dop,MQA
Analog Audio Output	Preamp output: XLR(balanced) RCA Headphone output: 6.3mm single-ended
Control Methods	Remote control, Mobile APP control, Knob control
Headphone Impedance	16-300Ω （low gain mode:16-32Ω/high gain mode:32-300Ω）
Power	AC 110~240V 50/60Hz; Rated power: 9W
