Specifications

Advanced Features

• Support Layer 2 OSI Model

• Auto-MDI/MDIX crossover for all ports

• Secure store-and-forward switching scheme

• Full/half-duplex for Ethernet/Fast Ethernet speeds

• Supports 9,216 bytes jumbo frames

• Back pressure at half-duplex operation

• Wire-speed reception and transmission

• Auto-negotiation for each port

• Quality of Service (8 queues, strict mode)

Standards

• IEEE 802.3 10BASE-T

• IEEE 802.3u 100BASE-TX

• IEEE 802.3ab 1000BASE-T

• IEEE 802.3x Flow Control

• IEEE 802.1p QoS

• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)

• Storage: -40 to 70 °C (-40 to 158 °F)

Humidity

• Operating: 10% to 90% non-condensing

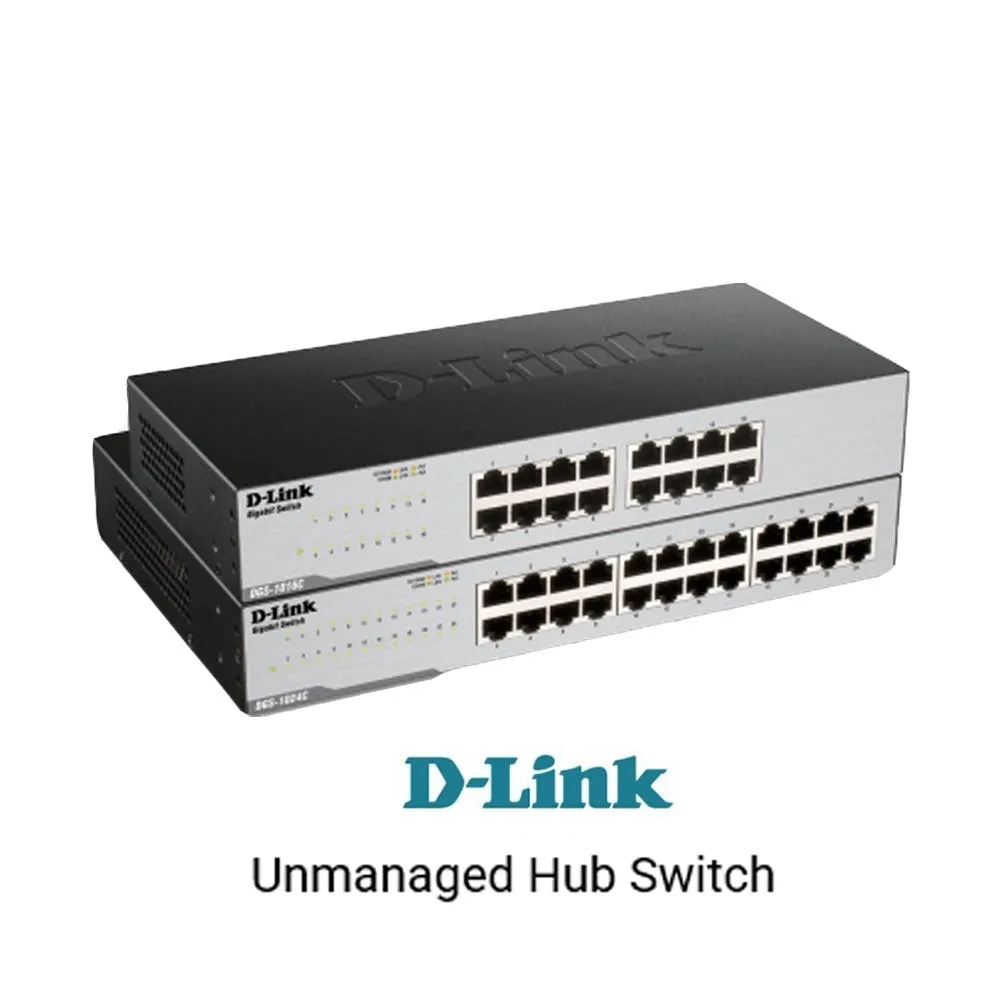

✅D-LINK DGS-1016C 16-Port Gigabit Unmanaged Switch

-Device Interfaces • 16 x 10/100/1000 Mbps LAN ports

-Switching Capacity • 32 Gbps

-Dimensions • 280 x 126 x 44 mm (11.02 x 4.96 x 1.73 in)

-Weight • 0.87 kg (1.92 lbs)

-Power Input • 12 V / 1 A

-Power Consumption

• Standby: 4.1 W

• Maximum: 11.7 W

-MTBF • 305,171 hours

-Maximum Heat Dissipation • 39.92 BTU/h

✅D-LINK DGS-1024C 24-Port Gigabit Unmanaged Switch

-Device Interfaces • 24 x 10/100/1000 Mbps LAN ports

-Switching Capacity • 48 Gbps

-Dimensions • 280 x 180 x 44 mm (11.02 x 7.09 x 1.73 in)

-Weight • 1.35 kg (2.98 lbs)

-Power Input • 100 to 240 V AC

-Power Consumption

• Standby: 4.4 W

• Maximum: 15.4 W

-MTBF • 302,287 hours

-Maximum Heat Dissipation • 52.54 BTU/h

⚠️ IMPORTANT NOTE ⚠️

3 Year Warranty

What's In The Box

1x D-LINK (DGS-1016C 16-Port /1024C 24-Port) Gigabit Unmanaged Switch
