Product Details
＋

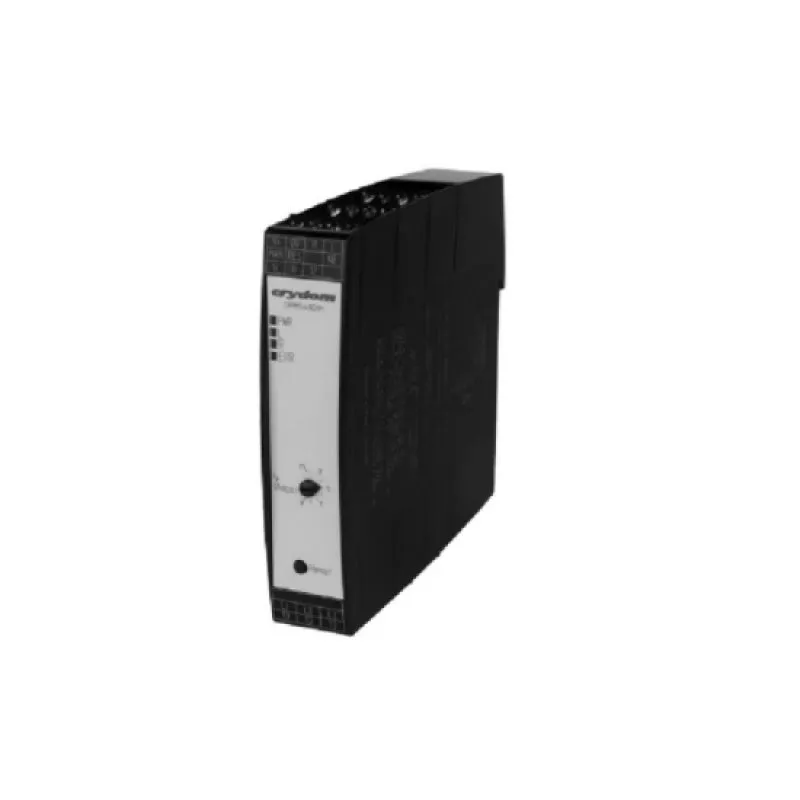

DRMS Series Hybrid Motor Starters are intelligent and convenient solutions for controlling 3-phase asynchronous motors. These compact devices can provide up to 6 functions in the same unit: Forward/Reverse, Soft Start/Soft Stop, Motor Overload Protection, and Mains Isolating Relay. Motor overload detection is based on a thermal load curve. The relays are de-energized when an overload condition is present, ensuring a long service life.
Specifications:
- Voltage: 24 V
- Power Consumption: 2 W
- Series: DRMS Series
Features:
- • 3-phase motors reversing up to 4 kW
- • 2-phase soft start/stop
- • Up to 4 dials for setting of starting torque, deceleration torque, soft start/
- stop, and rated motor current
- • 4 LEDs for status indication
- • Galvanic separated 24 VDC inputs for forward and reverse control
- • Reset button on front, with connection for external reset
- • Relay indicator output for operation
- • Hybrid relay combines benefits of electromechanical relay technology with
- non-wearing semiconductor technology
- • High reliability by temperature monitoring of semiconductors
