Product Details
＋
-
Primary Information

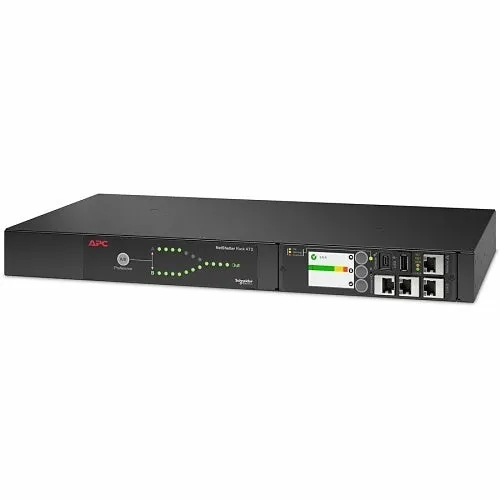

Product Description: APC Netshelter Rack Automatic Transfer Switch AP4450A - redundant switch - 1440 VA Device Type: Redundant switch - rack-mountable Cord Length: 8 ft Rack Size: 1U Weight: 9.7 lbs Input Wiring: 1-phase Input Voltage: AC 100/120 V Output Voltage: AC 100/120 V Power Capacity: 1440 VA Input Connectors: 2 x power NEMA 5-15P Output connectors: 10 x power NEMA 5-15R Networking: USB, Ethernet 10/100/1000 Remote Management Protocol: SNMP, CLI Included Accessories: Mounting kit, rack mounting brackets Color: Black Dimensions (WxDxH): 17 in x 9.3 in x 1.7 in Manufacturer Warranty: 2-year warranty -
General
Device Type: Redundant switch - rack-mountable Height (Rack Units): 1U Cord Length: 8 ft Color: Black -
Power Device
Input Voltage: AC 100/120 V Input Voltage Margin: ± 10% Input Wiring: 1-phase Frequency Required: 50/60 Hz Input Connectors: 2 x power NEMA 5-15P Power Output Connectors Details: 10 x power NEMA 5-15R Output Voltage: AC 100/120 V Max Electric Current: 15 A Power Capacity: 1440 VA -
Networking
Remote Management Interface: USB, Ethernet 10/100/1000 Remote Management Protocol: SNMP, CLI -
Expansion / Connectivity
Interfaces: 1 x sensor ¦ 3 x LAN - RJ-45 ¦ 3 x USB - 4 pin USB Type A ¦ 1 x USB - 5 pin Micro-USB Type B -
Miscellaneous
Included Accessories: Mounting kit, rack mounting brackets Cables Included: 2 x power cable - integrated - 1 in ¦ Serial cable - external Rack Mounting Kit: Included Features: Horizontal orientation, LCD display, LED indicators Compliant Standards: WEEE, PSE Mark, REACH, VCCI Class A, China RoHS, EU RoHS, TÜV safety certification -
Manufacturer Warranty
Service & Support: Limited warranty - 2 years -
Environmental Parameters
Min Operating Temperature: 23 °F Max Operating Temperature: 113 °F Humidity Range Operating: 5 - 95% -
Dimensions & Weight
Width: 17 in Depth: 9.3 in Height: 1.7 in Weight: 9.7 lbs -
Dimensions & Weight (Shipping)
Shipping Width: 23.6 in Shipping Depth: 14 in Shipping Height: 4.5 in Shipping Weight: 13.6 lbs -
Special Feature
COO: PHILIPPINES TAA compliance: No -
UNSPSC Code: 24102001
