6061 Aluminum
Frame
29" Alloy Double
Wall Rims
Ultra Wide 31"
Handlebar
9 Speed Shimano
Altus Drivetrain
Chromoly Fork
A chromoly fork provides a strong support base for your steering and wheel control. Chromoly is stronger than stainless steel, while being lightweight and flexible. This provides stability combined with manoeuvrability for greater handling.
29″ Alloy Double Wall Rims
A double wall rim has a higher strength to weight ratio, offering a huge performance advantage. On top of this, the solid 29″ diameter offers a sturdy wheel while significantly reducing drag.
High Performance Tyres
With their impressive speed and grip, the Kenda Small Block 8 Tyres are well-suited for a wide range of riding environments.

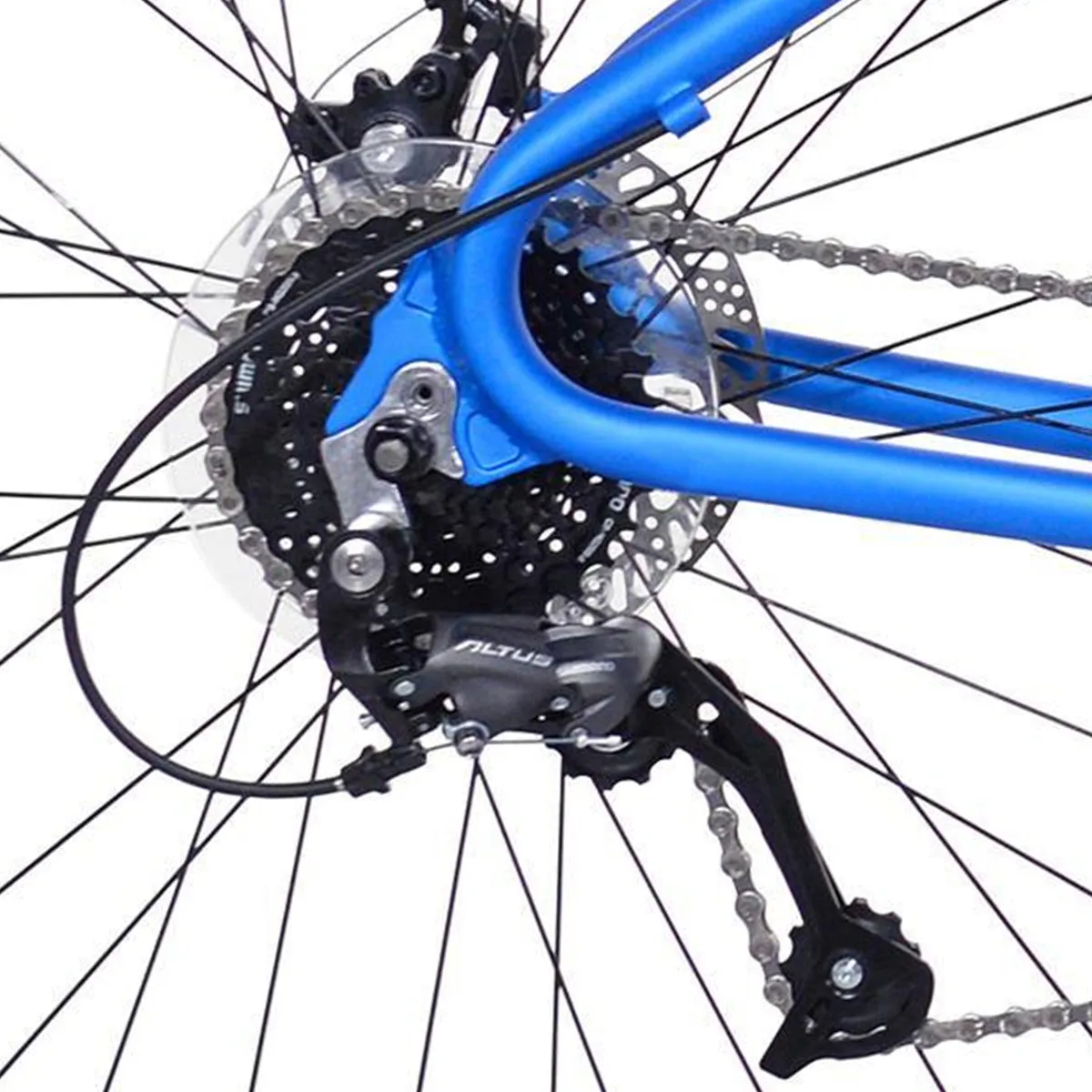

9 Speed Drivetrain & Rapid Fire Shifters
The 9 Speed Shimano Altus Drivetrain offers smooth gear shifting allowing you to easily adapt to any given terrain. Swiftly switch between gears with the Rapid Fire shifters.

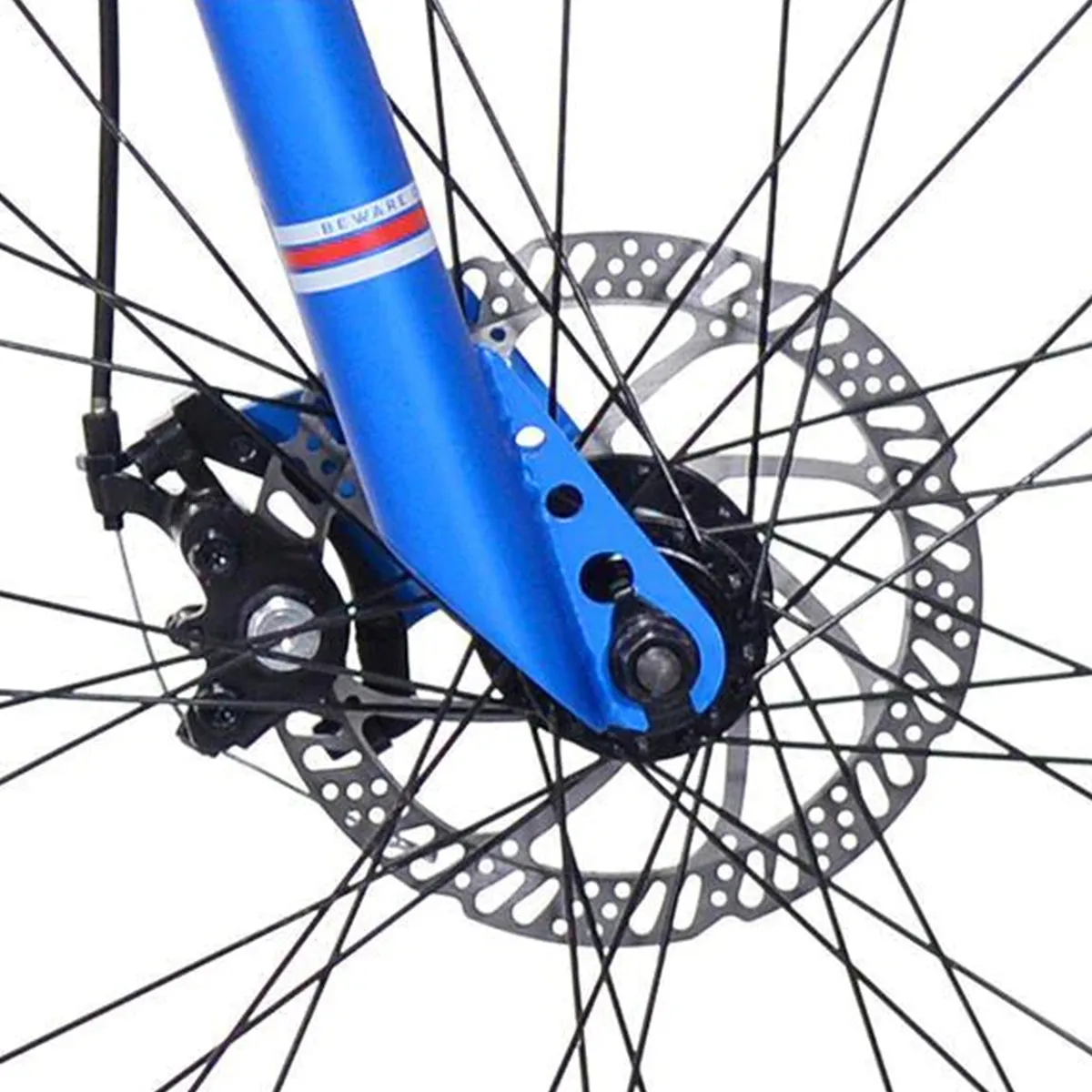

Strong Stopping Power
The Tektro Mechanical Disc Brakes provide high powered braking which will help you come to a safe stop. Having a reliable braking system is essential for BMX riders.

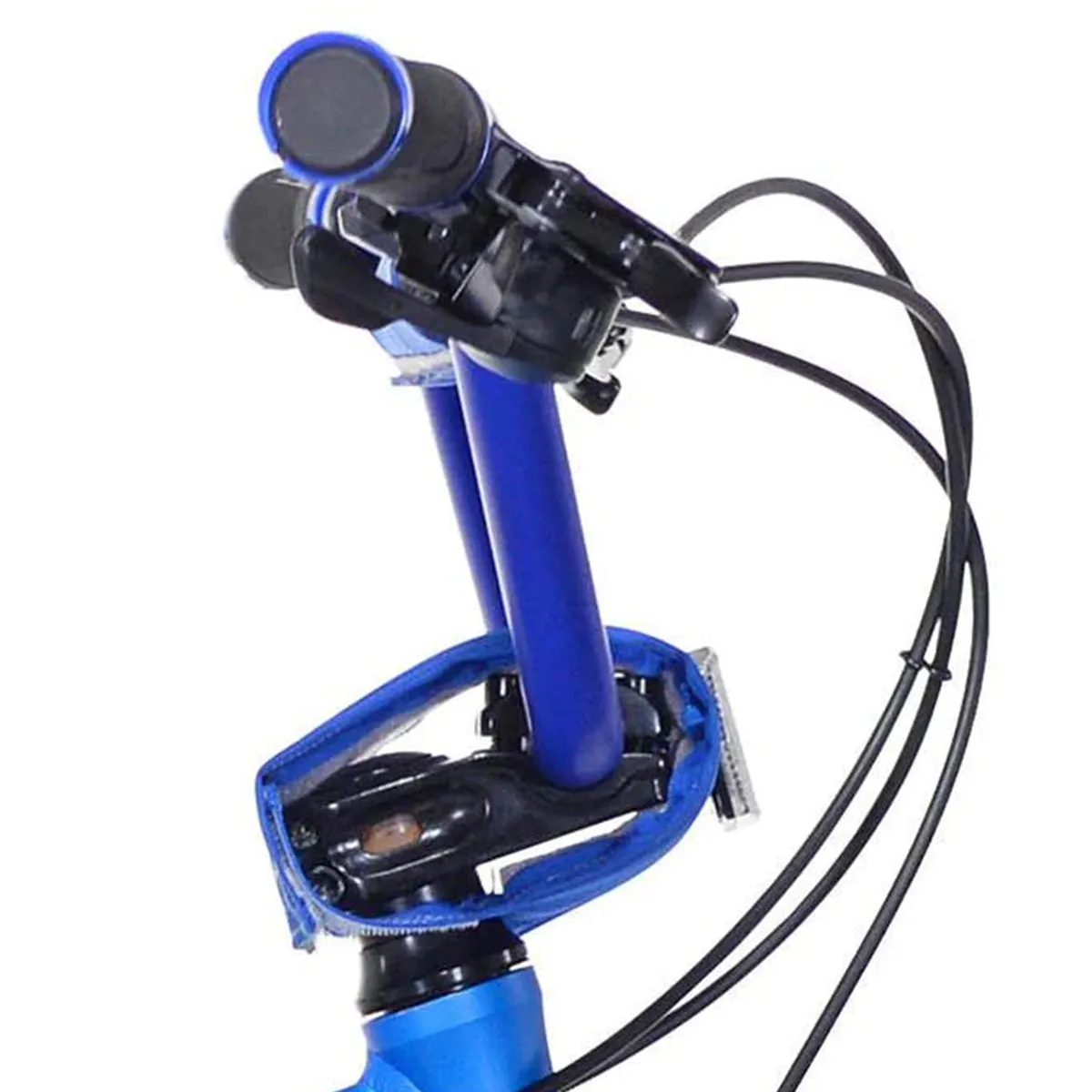

Ultra Wide 31″ Handlebar
Achieve a comfortable ride and ultimate control with the ultra wide 31″ handlebars. This provides that extra leverage and that classic BMX handlebar style.
The Blueprints
An awesome package with the following components:
- A. Ultra Wide 31″ Handlebar
- B. Padded BMX Saddle
- C. 6061 Aluminum Frame
- D. Tektro Mechanical Dual Disc
- E. Chromoly Fork
- F. 29″ Alloy Double Wall Rims
- G. 9 Speed Shimano Altus Drivetrain
Where to ride?
Specification
Technical Specifications
| FRAME | 6061 ALUMINUM |
|---|---|
| FORK | CHROMOLY |
| BRAKES | TEKTRO MECHANICAL DUAL DISC |
| PEDALS | ALLOY BMX PLATFORM |
| SADDLE / SEAT POST | PADDED BMX SADDLE WITH ALLOY 350mm SEAT POST |
| HUBS | 14G 36H ALLOY |

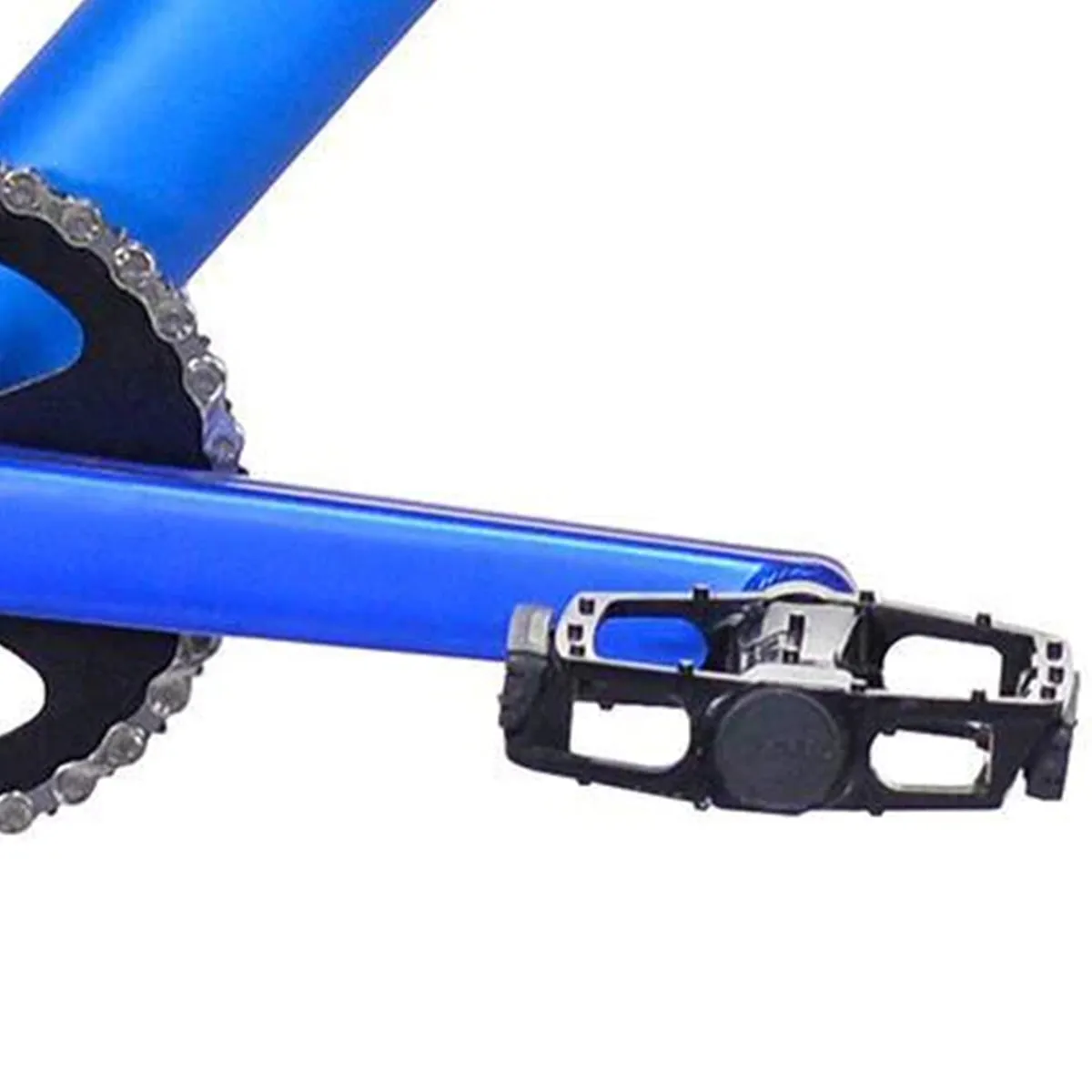

| CRANK | 175mm 3pc CHROMOLY |
| CHAINWHEEL | 32T ALLOY |
| CASSETTE | 11-32T 9 SPEED |
|---|---|
| SHIFTERS | 9 SPEED SHIMANO ALTUS RAPID FIRE |
| DERAILLEUR | 9 SPEED SHIMANO ALTUS |
| WHEELS | 29" ALLOY DOUBLE WALL |
| TIRES | 29" x 2.1" KENDA SMALL BLACK 8 |
| HANDLEBAR | SUPER WIDE 31" STEEL |
| GRIPS | BMX ALLOY LOCKING |
| STEM | ALLOY 50mm |
Bike Size Guide
| A - Seat Tube | 42.9cm |
| B - Seat Tube Angle | 71° |
| C - Head Tube Angle | 71° |
| D - Effective Top Tube | 63.5cm |
| E - Chainstay Length | 45.7cm |
| F - Wheelbase | 109.7cm |
| G - Standover | 77.4cm |
