The SEM300-PS-VZ-M replaces the previous model (SEM210) It is an LTE cellular and internet communicator from Alarm.com for the DSC PC1616, PC1832, and PC1864. The SEM300-PS provides dual-path communication to your system for Alarm.com service plans. Also includes a z-wave hub for automation service packages. This model runs on Verizon signal.
ADC-SEM300-PS-VZ-M System Enhancement Module For DSC PowerSeries (Verizon)

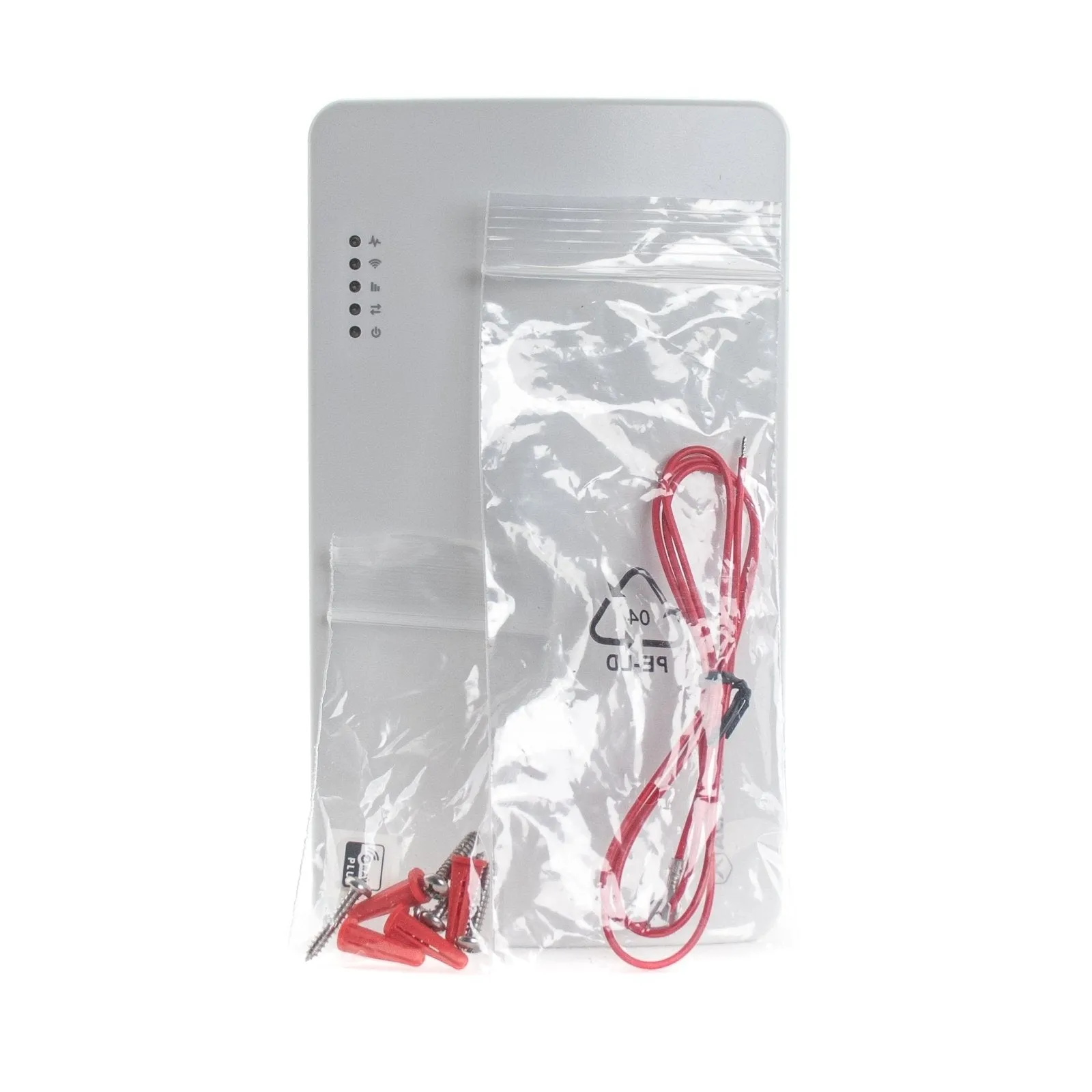

What you'll get:
1 - ADC-SEM300-PS-VZ-M
1 - Antenna
1 - Red Power Wire for Battery Connection
3 - Screws
3 - Wall anchors
The ADC-SEM310-PS-VZ-M is a dual path Verizon cellular and Broadband internet communicator for DSC PC1616, PC1832, and PC1864 alarm systems that are version 4.2 or higher. This will send signal over the 4G Verizon Network and has an optional hookup, via ethernet cable, for connecting to a router for IP communications.
This will operate from the panel's 12V power and will stay up and running during a power outage due to the backup battery of the alarm system it is hooked to. This module uses the black, green, and yellow terminals on the DSC panel for hook up and the positive wire will land on the positive terminal of your backup battery.

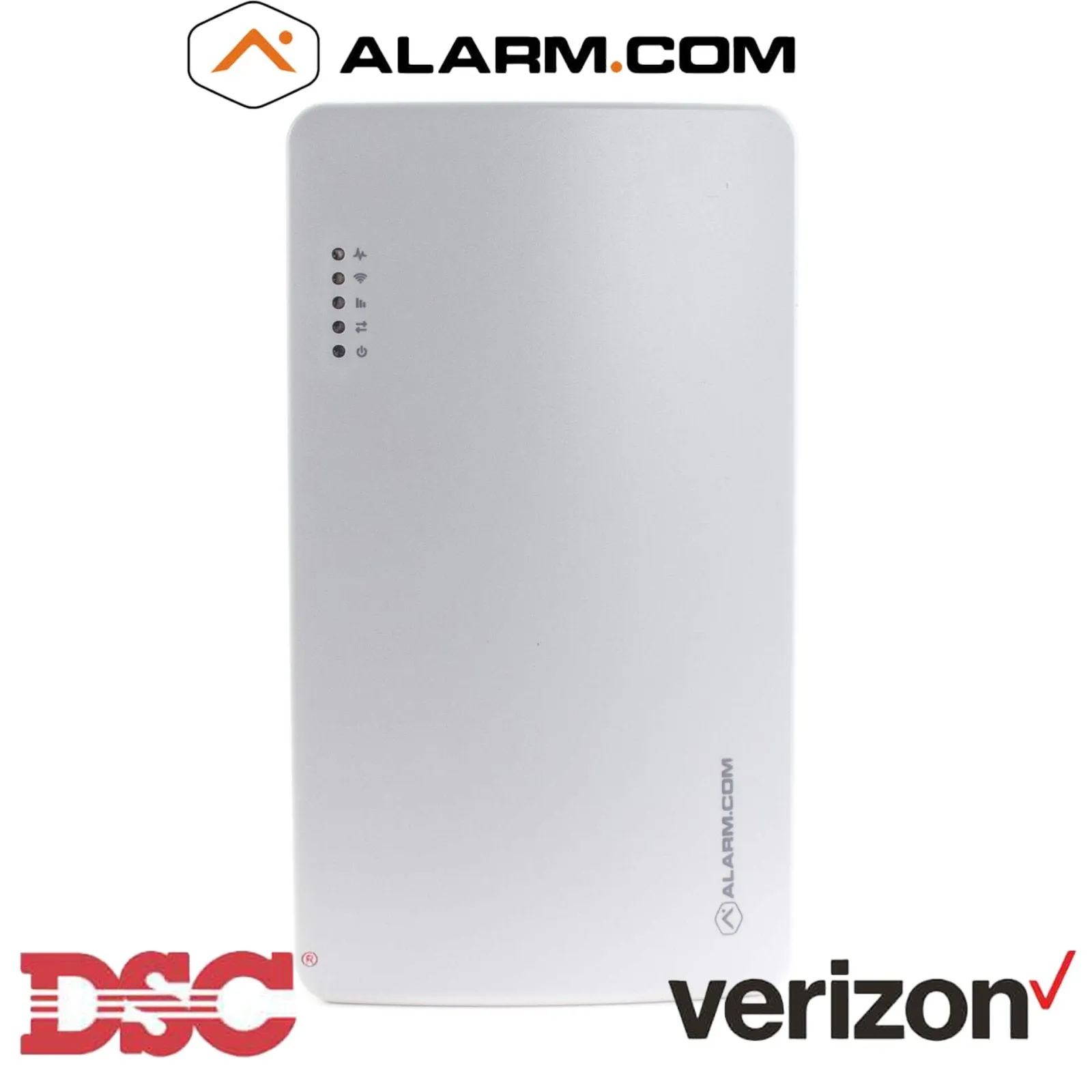

The SEM300 has indicator LEDs to give you status on the connection to the Alarm.com service and also features other LEDs to let you check on the status of the broadband connection and communications status.
The ADC-SEM300-PS-VZ-M also features a Z-Wave control unit that you be able to utilize if you subscribe to the and will give you the ability to create a Z-Wave network in your home for such as lights, door locks, and thermostats.
Current Draw: 130 mA (standby) 2000 mA (alarm transmission)
Cellular Network: Verizon Dual Band 4G LTE
Z-wave frequency: 908.4MHz
Panel Interfaces: 3 wire bus connection 12V power to panel battery
Alarm.com Module Indicators:
One module/panel communication status LED, one module power LED, one automation LED, three wireless communication status LEDs
SEM Circuit Board Indicators:
One LAN LED, one processor LED, one COMM fail LED
Operating Temperature: 32 to 120°F (0 to 49°C)
Storage Temperature: -30 to 140°F (-34 to 60°C)
Humidity: 90% relative humidity non-condensing
Enclosure Dimensions (L x W x D).............7.5 x 4.25 x 1.5” (19.05 x 11.43 x 3.81 cm)
Enclosure Color: White
Case Material: High-impact, ABS plastic
