Product Details
＋
Product Overview

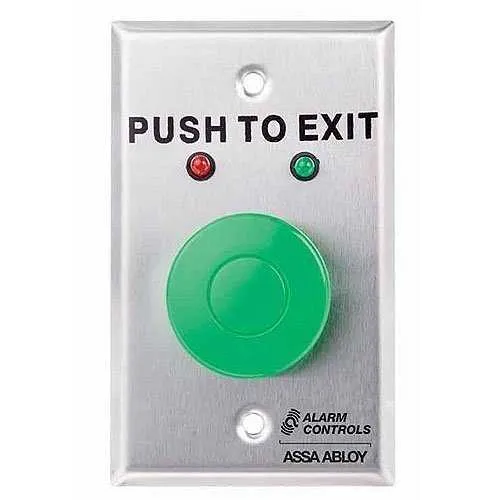

The TS-1 single gang request to exit station with push button and LEDs provides a convenient way to monitor the lock station. LED status indicators provide an at-a-glance visual of system status.
Features
Standard Features
- Switch mounted on single gang wall plate with 430 stainless steel finish
- Large 1-1/2" green mushroom button
- Plate labeled “PUSH TO EXIT” for easy to follow egress instructions
- 1/4" red and green LED status indicators; illuminated with hi-brightness LED
- Momentary action switch
Options
- TS-1Lwith alternate action switch
- TS-1Rwith red mushroom push button
- Finishes: multiple plate finishes available
- Other contact combinations available as custom part
Specifications
Certifications & Listings
- UL 294 listed
- CSA Certified components
Electrical:
- One N/O and N/C contact
- Contacts rated 10A at 35 VDC or 120 VAC
- Switch connection via screw terminals
- Switch depth behind plate: 2"
- LEDs operates on 12 or 24 VAC/VDC, independently wired
Operating Temperature:-13F to 158 F (-25 to 70 C)
General Information
Name: Alarm Controls TS-1LATCHRED Request to Exit Station, Labeled "PUSH TO EXIT", Stainless Steel, ASSA ABLOY, Alarm Controls by ASSA ABLOY
Category: Alarm Controls by ASSA ABLOY, Access Control, Egress Devices, Request to Exit Devices
UPC Code: 604840721561
Country of Origin: United States. Country of origin is subject to change.
