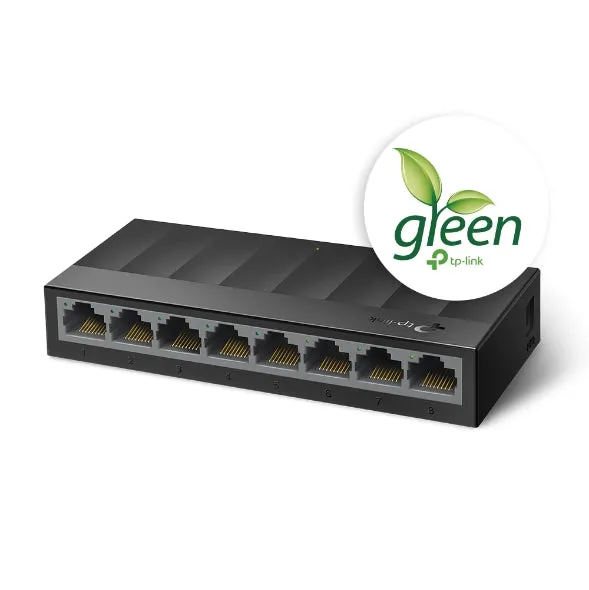

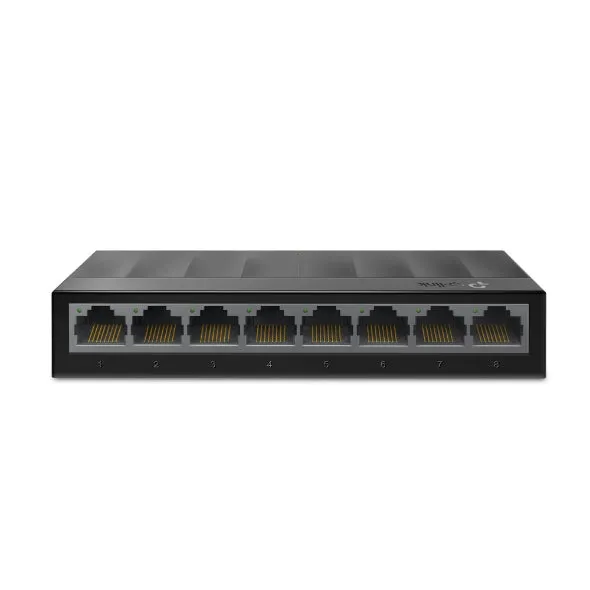

8-Port 10/100/1000Mbps Desktop Switch

What This Product Does

The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly.

Green Technology

The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Gigabit Ports For More Reliable Speeds

Increase the reliability of your connected devices with the LS1008G 5-port Gigabit desktop switch. Non-blocking, 5× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.

Features

8× 10/100/1000Mbos Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
Green Ethernet technology saves power
IEEE 802.3X flow control provides reliable data transfer
Plastic casing, desktop or wall-mounting design
Plug and play, no configuration needed
Fanless design ensures quiet operation

Specifications

HARDWARE FEATURES
Interface	8 x 10/100/1000 Mbps RJ45 Ports, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 5VDC / 0.6A)
Dimensions (W x D x H)	5.0 x 2.6 x 0.9 in (127 x 66.5 x 23 mm)
Max Power Consumption	2.7 W
Max Heat Dissipation	13.3 BTU/h

PERFORMANCE
Switching Capacity	16 Gbps
Packet Forwarding Rate	11.9 Mpps
MAC Address Table	4K
Packet Buffer Memory	1.5 Mb

GENERAL

Certification

CE, FCC, RoHS

Package Contents

8-Port 10/100/1000 Mbps Desktop Switch

Power Adapter

Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40℃~60℃ (-40℉~140℉)

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5%~90% non-condensing

Additional Information

Ethernet Switch Accessories

An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don’t require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our please visit our overview page. Our switches can be combined with a wide array of products such as:
